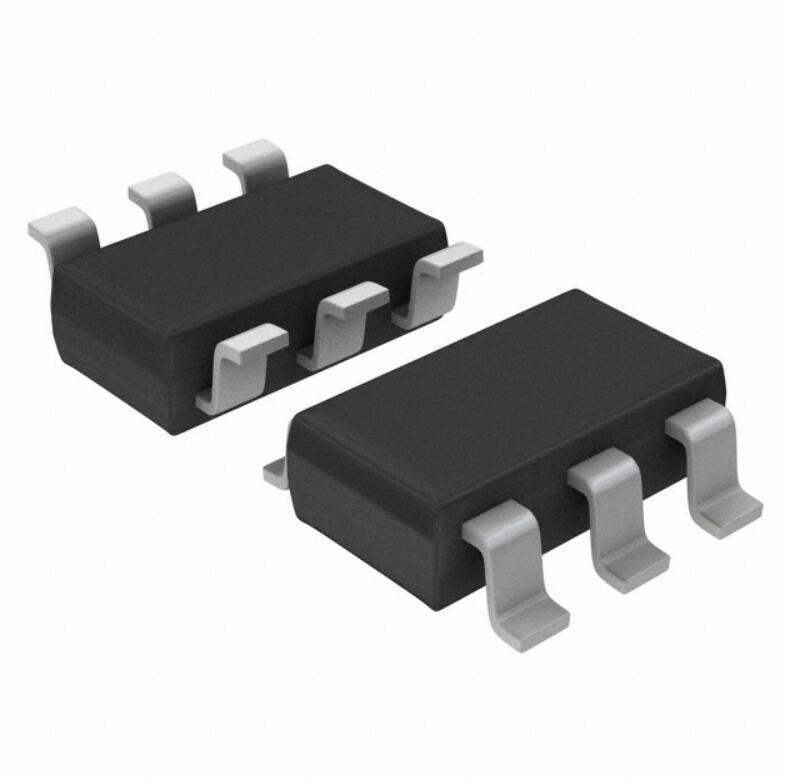

The SZTVS4201MR6T1G is a state-of-the-art Zener diode designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This Zener diode is part of the robust voltage regulator family, offering excellent voltage stabilization for a wide array of electronic applications.

Key Features

• Voltage Range: The device offers a nominal Zener voltage of 4.2 volts, making it ideal for applications requiring a precise voltage reference.
• Power Dissipation: With a power dissipation rating of 1 watt, the SZTVS4201MR6T1G can handle significant energy without compromising performance, ensuring reliability even under stressful conditions.
• Package: Encased in a small and durable SOD-123 package, this Zener diode is optimized for space-constrained applications while providing robust mechanical protection.
• High Surge Capability: It is designed to withstand surge events, offering enhanced protection against voltage transients and spikes that are common in electrical circuits.
• Temperature Range: The device operates effectively within a broad junction temperature range of -55°C to +150°C, suitable for various challenging environments.

Applications

The SZTVS4201MR6T1G is versatile and can be used in numerous applications, including:

• Voltage regulation modules
• Over-voltage and over-current protection circuits
• Switching power supplies
• Consumer electronics
• Automotive systems

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The SZTVS4201MR6T1G is no exception, as it undergoes rigorous testing to ensure it meets the stringent requirements for industrial and automotive applications. It is also RoHS compliant, reflecting the company's dedication to environmental sustainability.

Conclusion

The SZTVS4201MR6T1G from ON Semiconductor is an exemplary Zener diode that combines precision voltage regulation with high power capabilities. Its compact form factor, surge resilience, and wide operating temperature range make it a top choice for engineers and designers looking to integrate a reliable voltage regulator into their electronic systems.
