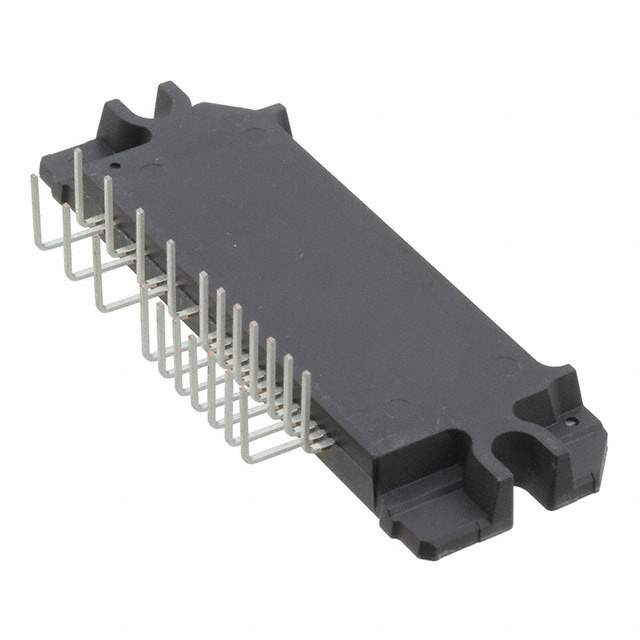

ON Semiconductor STK551U3A2A-E Intelligent Power Module

The STK551U3A2A-E is an advanced Intelligent Power Module (IPM) developed by ON Semiconductor, a leading provider of semiconductor-based solutions. This IPM is specifically designed to enhance the performance and reliability of motor drive applications. It integrates power elements, gate drive, and protection circuitry into a single, compact package, providing an efficient solution for inverter systems used in air conditioners, washing machines, and other home appliances, as well as industrial equipment.

At the heart of the STK551U3A2A-E module is a three-phase inverter bridge configuration that includes six IGBTs (Insulated Gate Bipolar Transistors) with high-speed and low-loss characteristics. The module is capable of handling a maximum rated current of 10A and a voltage rating of up to 600V, making it suitable for a wide range of applications that require high power efficiency and density.

One of the key features of the STK551U3A2A-E is its built-in overcurrent protection, which ensures the longevity and stability of the module by preventing damage due to excessive current flow. Additionally, the module includes under-voltage lockout and over-temperature protection, further safeguarding the system against operational hazards.

The module's integrated bootstrap diodes for the high-side drive function simplify the circuit design and reduce the external component count, leading to a more compact and cost-effective system layout. The gate drive circuitry is optimized for low electromagnetic interference (EMI), which is crucial for maintaining performance in noise-sensitive applications.

ON Semiconductor's STK551U3A2A-E also features a lead-free and RoHS compliant design, reflecting the company's commitment to environmental sustainability. The IPM's package is designed to facilitate efficient heat dissipation, ensuring reliable operation even under high thermal conditions.

Overall, the STK551U3A2A-E Intelligent Power Module from ON Semiconductor is an excellent choice for designers seeking a robust, high-performance solution for their motor control applications. Its integration of advanced features in a single package allows for simplified design, enhanced performance, and increased reliability.
