ON Semiconductor SS14FP Schottky Barrier Rectifier Diode

The SS14FP, a high-performance Schottky Barrier Rectifier from ON Semiconductor, is engineered to provide efficient, low voltage drop rectification in a range of electronic applications. This diode is notable for its low forward voltage drop and fast switching capabilities, making it an ideal choice for high-frequency and energy-sensitive circuits.

Key Features

• Low Power Loss/High Efficiency: The SS14FP is designed to minimize power loss, which is crucial for improving efficiency in power-sensitive designs.
• High Surge Capability: It is capable of withstanding high surge currents, ensuring reliability and robustness in demanding situations.
• Low Forward Voltage Drop: With a forward voltage drop that is typically lower than that of conventional PN junction diodes, this device allows for better performance in low voltage applications.
• Fast Switching Speed: The diode's fast switching capability is beneficial for applications requiring high-speed operation.
• Lead-Free Finish: The product has a lead-free finish, making it suitable for use in lead-free soldering processes and compliant with RoHS directives.

Applications

The ON Semiconductor SS14FP is versatile and can be used in a variety of applications including:

• DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Power supply devices
• Reverse battery protection
• Automotive applications

Specifications

This Schottky Barrier Rectifier features a repetitive peak reverse voltage of 40V and an average forward rectified current of 1.0A at TA = 75°C. The peak forward surge current is 40A, and the device operates over a junction temperature range of -55°C to +125°C, accommodating a wide range of environmental conditions.

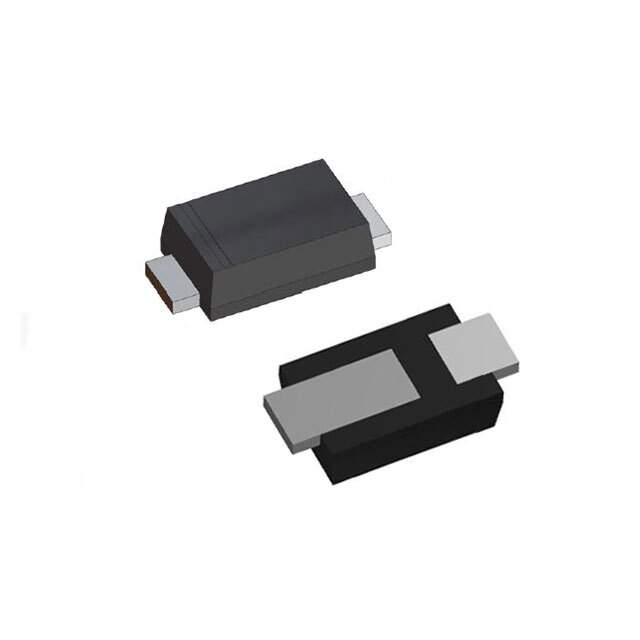

The SS14FP is packaged in a low-profile surface mount SMB footprint, which is ideal for automated assembly processes and applications where space is at a premium.

When selecting a diode for your circuit, the SS14FP from ON Semiconductor offers a blend of efficiency, speed, and reliability, making it a top choice for engineers and designers looking to optimize their power management solutions.
