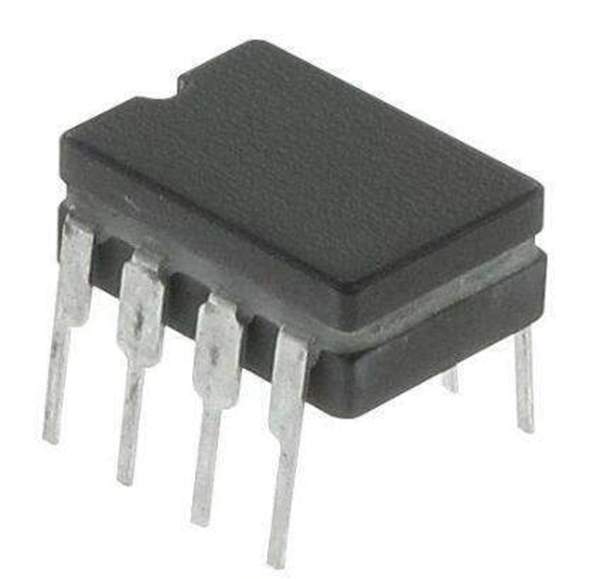

RC5532AN

Part No RC5532AN
Manufacturer ON Semiconductor
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Operational Amplifiers - Op Amps DISC BY MFG 2/02
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer onsemi
Category Operational Amplifiers - Op Amps
RoHS N
Number of Channels 2 Channel
GBP - Gain Bandwidth Product 10 MHz
SR - Slew Rate 8 V/us
Vos - Input Offset Voltage 4 mV
Ib - Input Bias Current 800 nA
Supply Voltage - Max +/- 20 V
Supply Voltage - Min +/- 3 V
Ultra Librarian 3D Model Ultra Librarian RC5532AN CAD Model

Description

The RC5532 is a high performance, dual low noise operational amplifier. Compared to standard dual operational amplifiers, such as the RC747, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths.
This makes the device especially suitable for application in high quality and professional audio equipment, instrumentation, control circuits, and telephone channel amplifiers. The op amp is internally compensated for gains equal to one. If very low noise is of prime importance, it is recommended that the RC5532A version be used which has guaranteed noise specifications.
