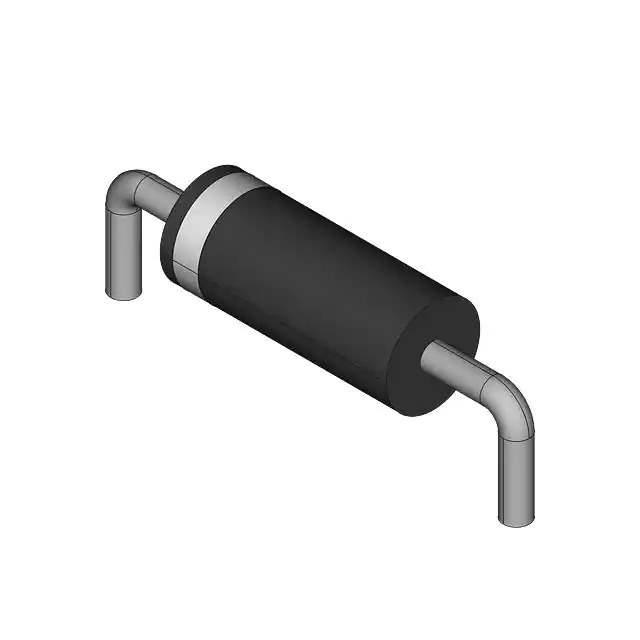

ON Semiconductor P6KE10AG - TVS Diode

The ON Semiconductor P6KE10AG is a Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This robust TVS diode is a critical component in safeguarding circuits by clamping unwanted high-voltage spikes and surges to a safe level.

Key Features:

• Peak Pulse Power Dissipation: The P6KE10AG offers a 600 W peak pulse power dissipation capability with a 10/1000 μs waveform, ensuring effective protection against high-energy transients.
• Breakdown Voltage: It has a stand-off voltage of 8.55 V, with a minimum breakdown voltage of 9.50 V, providing a margin of safety for the protected circuit.
• Reverse Stand-off Voltage: Designed with a reverse stand-off voltage of 8.55 V, this TVS diode can sustain itself without conducting in standby mode, ensuring no impact on the normal operation of the circuit.
• Uni-directional Protection: As a uni-directional TVS, the P6KE10AG is optimized for DC applications where polarity is fixed, offering protection in one direction.
• Response Time: With a response time of less than 1 picosecond from 0 V to BV min, it provides near-instantaneous protection from transient over-voltages, thus safeguarding sensitive components.
• Operating Temperature Range: It operates over a wide temperature range from -55°C to 175°C, suitable for harsh environmental conditions.
• Package: The device is available in an axial-lead package which is designed to be easy to install and handle in a wide range of applications.
• Compliance: It meets the ISO 7637-2 surge specification and is RoHS compliant, ensuring adherence to current environmental standards.

Applications:

The P6KE10AG is ideal for use in a variety of applications, including:

• Industrial systems
• Consumer electronics
• Automotive systems
• Telecommunication devices
• Power supply protection

With its combination of features, the ON Semiconductor P6KE10AG TVS diode is an excellent choice for designers looking to enhance the durability and reliability of their electronic products against voltage transients.
