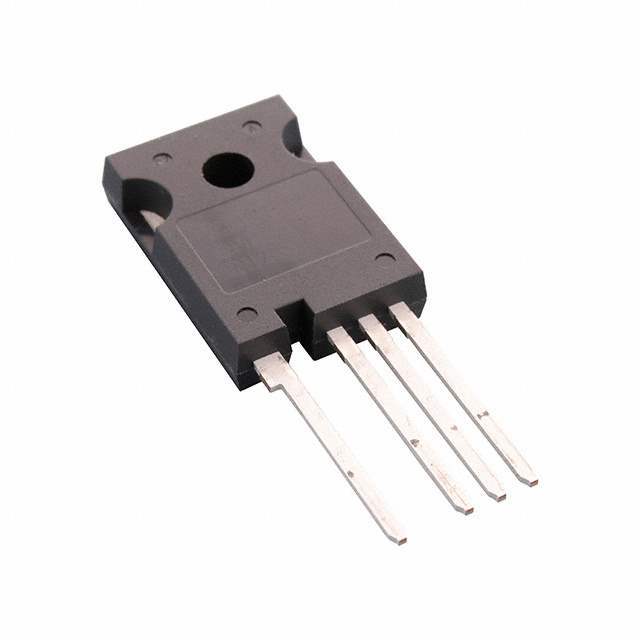

ON Semiconductor NVH4L020N120SC1 N-Channel MOSFET

The NVH4L020N120SC1 is a high-performance N-Channel MOSFET from ON Semiconductor, designed to deliver efficiency and power handling capabilities for a broad range of applications. This robust semiconductor device is built using silicon carbide (SiC) technology, which offers superior thermal performance, higher switching frequencies, and reduced power losses compared to traditional silicon-based MOSFETs.

Key Features

• High Blocking Voltage: With a drain-to-source voltage (V_DS) of 1200V, the NVH4L020N120SC1 can handle high voltage applications, making it suitable for power supply systems and industrial power converters.
• Low On-Resistance: The device offers a low on-resistance (R_DS(on)) of 20 mΩ, which minimizes conduction losses and improves overall efficiency.
• High Current Capacity: It is capable of supporting a continuous drain current (I_D) of up to 31A, allowing it to drive high power loads with ease.
• Fast Switching Speed: The MOSFET's fast switching capabilities reduce switching losses and enable operation at higher frequencies, which is crucial for power conversion in modern electronic applications.
• Enhanced Thermal Performance: Thanks to SiC technology, the NVH4L020N120SC1 exhibits excellent thermal characteristics, which ensures reliable operation even under high-temperature conditions.

Applications

The versatility of the NVH4L020N120SC1 MOSFET makes it an ideal choice for a variety of applications, including:

• Electric vehicle (EV) charging stations
• Renewable energy systems such as solar inverters
• Uninterruptible power supplies (UPS)
• High-efficiency power conversion systems
• Industrial motor drives and controls

Product Summary

The NVH4L020N120SC1 from ON Semiconductor represents a significant advancement in power MOSFET technology, offering designers the ability to create more efficient, reliable, and compact power management systems. With its high voltage and current handling capabilities, low on-resistance, and fast switching speeds, this N-Channel MOSFET is well-suited for the demanding requirements of modern electronic devices and power conversion applications.
