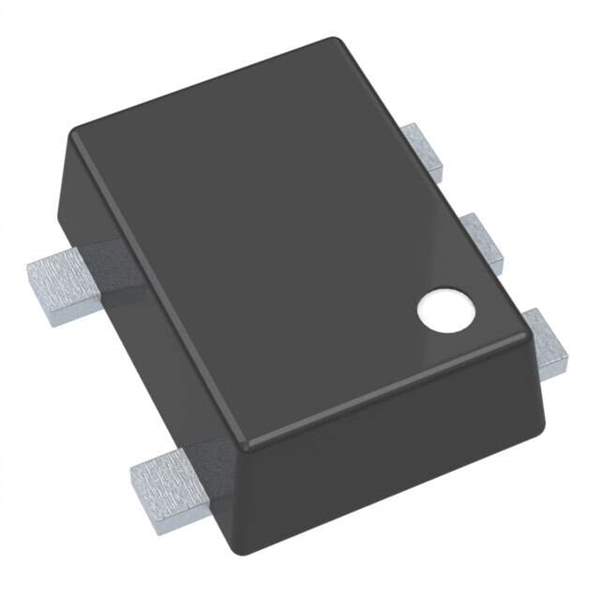

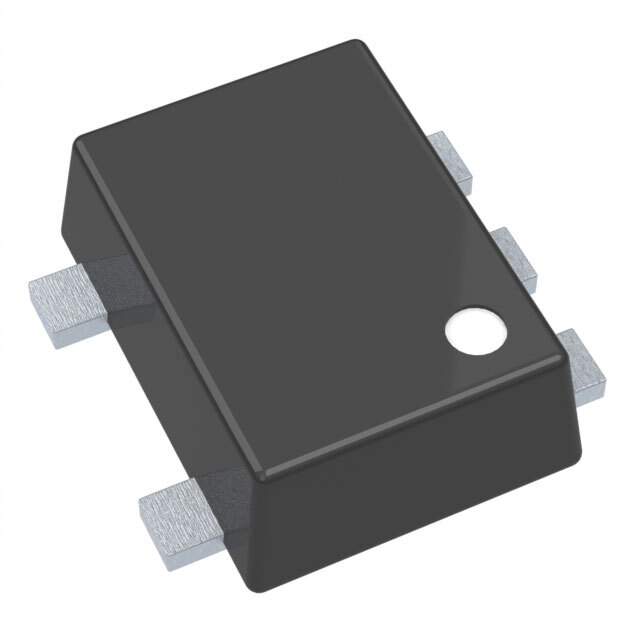

ON Semiconductor NUP4016P5T5G Overview

The NUP4016P5T5G is a cutting-edge transient voltage suppressor (TVS) array designed by ON Semiconductor to provide a robust protection solution for sensitive electronic components against electrostatic discharge (ESD), lightning, and other voltage-induced transient events. This device is ideal for safeguarding high-speed data lines and I/O ports in a wide range of applications, including consumer electronics, telecommunications, and computing systems.

Key Features

• ESD Protection: The NUP4016P5T5G offers excellent ESD protection that exceeds the IEC 61000-4-2 standard, ensuring the safety of electronic components from electrostatic discharges.
• Low Clamping Voltage: With its low clamping voltage, this device provides superior protection for sensitive circuits by limiting the voltage spikes during transient conditions.
• Low Capacitance: Designed with low capacitance diodes, it is highly suitable for protecting high-speed signal lines without significantly affecting signal integrity.
• Multiple Channel Configuration: This TVS array features a 5-line protection scheme, making it versatile for protecting multiple lines with a single component.
• Compact Package: The NUP4016P5T5G comes in a small SOT-953 package, which is ideal for space-constrained applications.
• RoHS Compliant: It is fully compliant with the RoHS directive, making it an environmentally friendly choice for modern electronic designs.

Applications

The NUP4016P5T5G is designed to be used in various applications where protection from voltage transients is critical. It is commonly used in:

• USB Interfaces
• HDMI Ports
• Portable Electronics
• Networking Devices
• Notebook Computers
• Mobile Phones
• Other High-Speed Data Line Applications

Product Summary

The ON Semiconductor NUP4016P5T5G is a highly efficient, multi-channel TVS array that offers robust protection against transient voltage events. Its low capacitance and low clamping voltage make it an excellent choice for protecting high-speed data lines in a variety of electronic devices. The small package size and compliance with environmental standards further enhance its appeal to designers looking for reliable and space-saving protection solutions.
