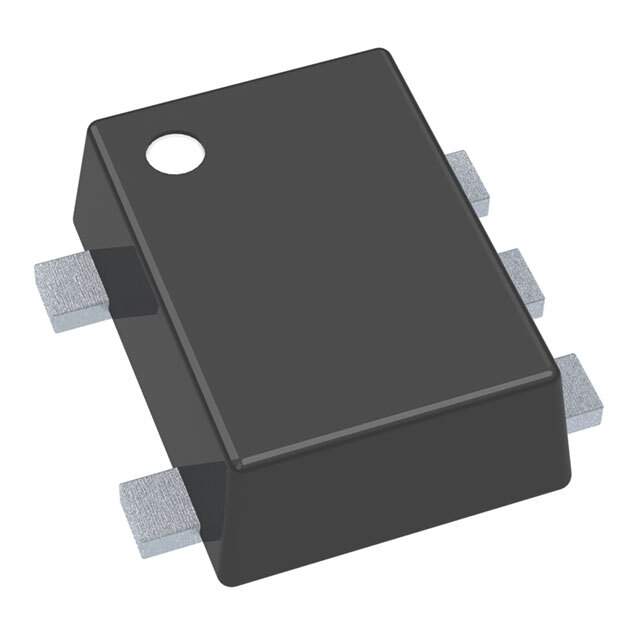

ON Semiconductor NUP2114UPXV5T1G - ESD Protection Diode

The NUP2114UPXV5T1G from ON Semiconductor is a state-of-the-art ESD protection device designed to safeguard high-speed data lines and I/O ports from electrostatic discharge (ESD) and other voltage-induced transient events. This robust component is an ideal solution for protecting sensitive electronics in a range of applications, including mobile phones, portable devices, computers, and networking equipment.

Key Features

• ESD Protection: The NUP2114UPXV5T1G offers exceptional ESD protection, meeting IEC61000-4-2 Level 4 standards with an ESD withstand voltage of ±20kV (air discharge) and ±12kV (contact discharge).
• Low Capacitance: With a low loading capacitance of just 0.7pF typical per I/O, this component ensures signal integrity for high-speed data lines without compromising on protection.
• Bi-Directional Design: The bi-directional configuration of the device provides symmetrical ESD protection for data lines that can experience positive and negative transients, making it versatile for various circuit designs.
• Low Leakage Current: The ultra-low leakage current of less than 0.1µA at the working voltage minimizes power consumption, which is critical for battery-powered devices.
• Small Footprint: Housed in a space-saving SOT-563 package, the NUP2114UPXV5T1G is optimal for applications where board space is at a premium.

Applications

The NUP2114UPXV5T1G is suitable for a wide range of applications that require reliable ESD protection without compromising the performance of high-speed data lines. Its typical applications include:

• USB 2.0 and 3.0 Power and Data Line Protection
• HDMI 1.3/1.4 and DisplayPort Interfaces
• Gigabit Ethernet and LVDS Interfaces
• Portable Electronics
• Smartphones and Tablets
• Notebook and Desktop Computers

Quality and Reliability

ON Semiconductor is committed to delivering high-quality and reliable components. The NUP2114UPXV5T1G is no exception, offering robust transient voltage suppression with the assurance of ON Semiconductor's rigorous quality standards. This ESD protection diode is a crucial component for designers looking to enhance the durability and longevity of their electronic products.
