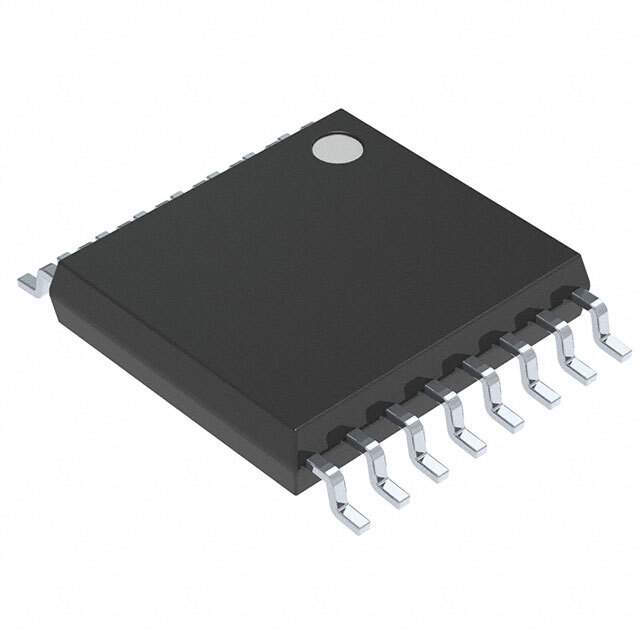

NLV74HC595ADTR2G

Part No NLV74HC595ADTR2G
Manufacturer ON Semiconductor
Catalog Logic - Flip Flops
Description IC SHIFT REGISTER 8BIT 16TSSOP / Shift Shift Register 1 Element 8 Bit 16-TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Shift Registers
Mfr onsemi
Series Automotive, AEC-Q100, 74HC
Package Tape & Reel (TR)
Logic Type Shift Register
Output Type Tri-State
Number of Elements 1
Number of Bits per Element 8
Function Serial to Parallel, Serial
Voltage - Supply 2V ~ 6V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Base Product Number NLV74HC595
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-NLV74HC595ADTR2G-OS,ONSONSNLV74HC595ADTR2G
Standard Package 2,500
Win Source Part Number 1145337-NLV74HC595ADTR2G
Ultra Librarian 3D Model Ultra Librarian NLV74HC595ADTR2G CAD Model

Description

ON Semiconductor NLV74HC595ADTR2G - 8-Bit Shift Registers with Output Latches

The NLV74HC595ADTR2G is a high-performance, 8-bit serial-in, parallel-out shift register with a storage register and 3-state outputs from ON Semiconductor. This integrated circuit is designed to be used in a wide array of applications ranging from serial-to-parallel data conversion to extend the microprocessor's data bus. It is a variant of the popular 74HC595 series, with enhanced features to meet the demands of modern digital systems.

Key Features

  • High-Speed Operation: This device is capable of high-speed operation, which is essential for systems requiring quick data processing and throughput.
  • 8-Bit Serial Input: The NLV74HC595ADTR2G facilitates 8-bit serial input, allowing for efficient data transmission and minimizing the number of I/O lines required.
  • Parallel Output: With parallel output capabilities, the device can output data in a format that is readily usable by other system components.
  • Output Latches: The integrated output latches provide storage for the parallel outputs, ensuring data stability and integrity.
  • 3-State Outputs: The 3-state output configuration allows for connection to a common bus, which can be effectively disabled to prevent bus contention.
  • Shift Register Clear Function: A dedicated clear function enables the shift register to be rapidly cleared, enhancing data management and system control.

Applications

The NLV74HC595ADTR2G is versatile and can be used in a variety of applications, including:

  • Serial-to-parallel data conversion
  • Remote control holding registers
  • LED displays and LED drivers
  • Expandable data bus for microprocessors and microcontrollers

Product Specifications

The NLV74HC595ADTR2G is offered in a TSSOP-16 package, ensuring a compact footprint for space-constrained applications. It operates over a wide temperature range, making it suitable for industrial environments. The device is also compliant with the stringent requirements of the automotive industry, underlining its reliability and robustness.

ON Semiconductor's commitment to quality and performance is reflected in the NLV74HC595ADTR2G, making it an ideal choice for designers looking for a shift register solution that offers both functionality and durability.
