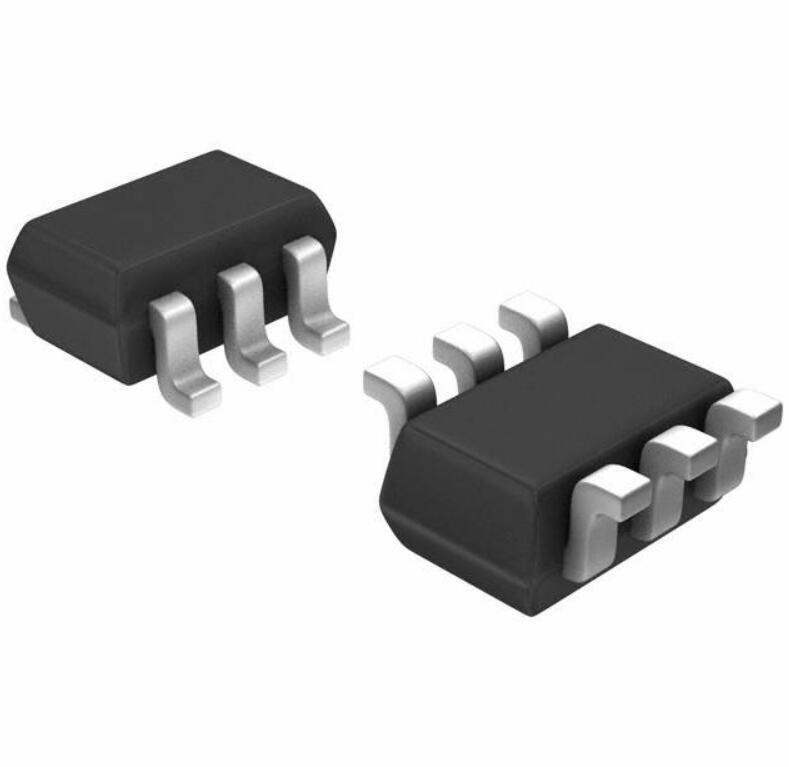

NLV27WZ06DFT2G

Part No NLV27WZ06DFT2G
Manufacturer ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER OD 2CH 2-INP SC88
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202524-NLV27WZ06DFT2G
Win Source Part Number Cross
Manufacturer onsemi
Category Integrated Circuits (ICs) Logic Gates and Inverters
Series Automotive, AEC-Q100, 27WZ
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Logic Type Inverter
Number of Circuits 2
Features Open Drain
Voltage - Supply 1.65V ~ 5.5V
Ultra Librarian 3D Model Ultra Librarian NLV27WZ06DFT2G CAD Model

Description

The NLV27WZ06DFT2G is a high-performance dual inverter designed by ON Semiconductor, featuring Schmitt-trigger inputs. This device is part of ON Semiconductor's extensive range of logic products and is crafted to meet the requirements of various applications, particularly in the automotive and industrial markets.

Key Features

  • Operating Voltage Range: This inverter operates over a wide voltage range of 1.65V to 5.5V, making it versatile for various low-voltage applications.
  • Schmitt-Trigger Input: The Schmitt-trigger input provides a hysteresis feature that enhances noise immunity and allows for slow input transition signals, which is especially useful in noisy environments.
  • High Drive Capability: The NLV27WZ06DFT2G can source or sink 24 mA at output voltages at or near the threshold region, providing robust drive capabilities.
  • Temperature Range: It is designed to operate over an extended temperature range from -55°C to +125°C, ensuring reliability in harsh conditions.
  • ESD Performance: The device has excellent ESD performance with HBM levels of 2000V, ensuring durability against electrostatic discharges.

Applications

The NLV27WZ06DFT2G is suitable for a wide array of applications, including but not limited to:

  • Wave shaping and noise filtering
  • Signal processing
  • Glitch-free power-up / power-down circuits
  • Automotive systems requiring AEC-Q100 qualification

Package and Quality

The device comes in a compact SOT-363 package, which is ideal for space-constrained applications. ON Semiconductor ensures that the NLV27WZ06DFT2G meets stringent quality standards, including AEC-Q100 qualification for automotive-grade reliability. The product is also RoHS compliant, aligning with environmental regulations and standards for hazardous substances.

Conclusion

ON Semiconductor's NLV27WZ06DFT2G is a robust, high-performance dual inverter with Schmitt-trigger inputs designed for a wide range of applications. Its ability to operate across a broad voltage range and temperature spectrum, combined with its strong drive capability and excellent ESD performance, makes it a reliable choice for designers looking for a versatile logic solution.
