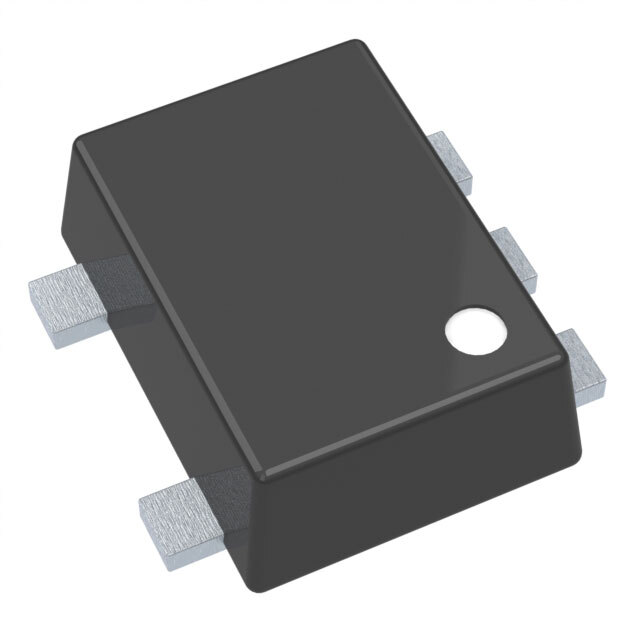

Same model may have multiple batches, images only for reference.
NLV27WZ00USG ON Semiconductor – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NLV27WZ00USG

Part No NLV27WZ00USG
Manufacturer ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 2CH 2-INP US8
Datasheet
NLV27WZ00USG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 1 µA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 3.6ns @ 5V, 50pF
Temperature Range - Operating -55°C ~ 125°C
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Supplier Device Package US8
Case / Package 8-VFSOP (0.091\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1500888-NLV27WZ00USG
Ultra Librarian 3D Model Ultra Librarian NLV27WZ00USG CAD Model
