ON Semiconductor NLV14106BDR2G Overview

The NLV14106BDR2G is a high-performance, dual retriggerable monostable multivibrator from ON Semiconductor. It is designed to provide precise timing for a wide range of pulse-width control applications. This device is part of the MC14000 series and is characterized for operation over the full automotive temperature range of -40°C to 125°C.

Key Features

• High Voltage Type (20V Rating): The NLV14106BDR2G can handle up to 20 volts, making it suitable for various applications requiring higher voltage levels.
• Retriggerable/Resettable Capability: The device can be retriggered by applying a pulse to the input, allowing for greater flexibility in timing adjustments and control.
• Static Operation: There is no requirement for an external clock, which simplifies the design and reduces power consumption.
• Output Pulse Width Range: The pulse width is determined by external timing components (resistor and capacitor), which can be adjusted to create a wide range of output pulse widths.
• Trigger and Reset Propagation Delays: The NLV14106BDR2G features consistent trigger and reset propagation delays, ensuring reliable and predictable timing for critical applications.
• Output Current: Capable of sourcing or sinking up to 50mA, the device can directly drive small loads or interface with other logic devices.
• Lead-Free and RoHS Compliant: This product is environmentally friendly and meets current regulatory requirements for hazardous substances.

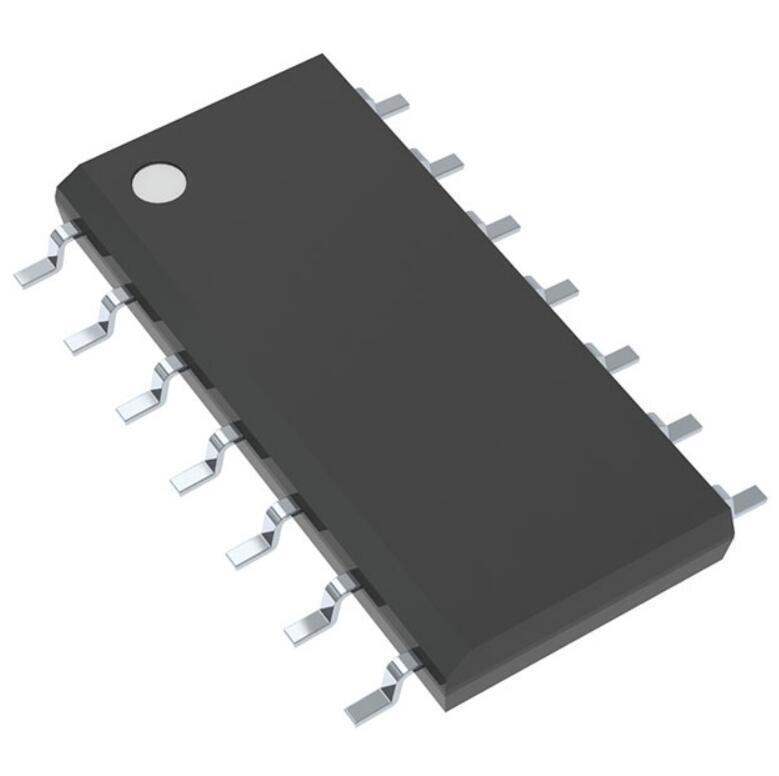

• Package: Offered in a 14-lead SOIC package, the NLV14106BDR2G is suitable for surface-mount technology (SMT), providing a compact footprint for space-constrained applications.

Applications

The versatility of the NLV14106BDR2G makes it an ideal choice for a variety of applications, including:

• Timing circuits
• Pulse shaping
• Missing pulse detection
• Envelope detection
• Automotive systems
• Industrial controls
• Consumer electronics

With its robust design and flexible operation, the NLV14106BDR2G from ON Semiconductor is an essential component for designers seeking a reliable and adaptable timing solution.
