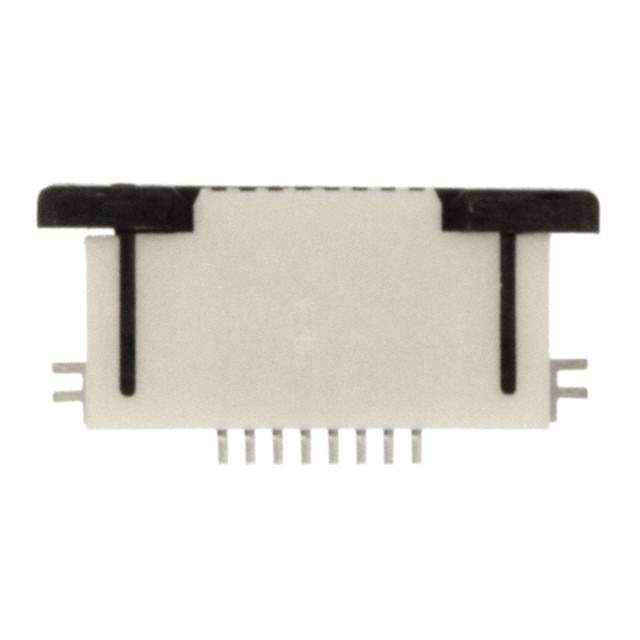

52745-0896 Real Image
Same model may have multiple batches, images only for reference.

52745-0896

Part No 52745-0896
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 8 POS 0.5mm Solder RA SMD Easy-On™ Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Glass, Polyphenylene
Contact Location Top
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 500 mA
Depth 4.3 mm
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color White
Housing Material Polyamide
Insulation Resistance 50 MΩ
Lead Free Yes
Lead Pitch 500 µm
Length 10.1 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 500 µm
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Wire/Cable Type Flat Flex
Win Source Part Number 991894-52745-0896
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52745-0896 CAD Model

Description

The Molex 991894-52745-0896 is a flat flex connector with a win source part number of 991894-52745-0896.

  • Contacts: 8
  • Contact Material: bronze
  • Contact Plating: tin
  • Manufacturer: Molex, LLC
