Overview

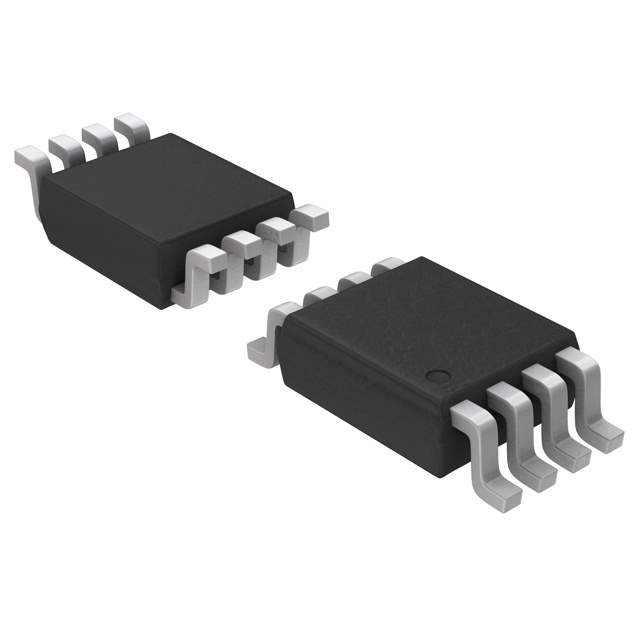

The ON Semiconductor NL27WZ32USG is a high-performance dual 2-input OR gate integrated circuit that offers a compact and efficient solution for a wide range of digital logic applications. This device is designed for use in systems that require low power consumption and high-speed operation. Its small footprint and reliability make it an excellent choice for portable and space-constrained applications.

Key Features

• High-Speed Operation: The NL27WZ32USG is capable of operating at high speeds, which is essential for modern digital circuits that require quick response times.
• Low Power Consumption: Designed with power efficiency in mind, this OR gate helps to minimize the overall power usage of electronic systems, making it ideal for battery-operated devices.
• Operating Voltage Range: It supports a wide operating voltage range from 1.65V to 5.5V, allowing for flexible integration into various logic level environments.
• Compact Package: The device comes in a US8 package, which is highly space-efficient and suitable for high-density circuit designs.
• Sink and Source Drive Capability: The outputs can sink or source current, providing versatility in interfacing with other components in a circuit.
• Compatibility: It is compatible with higher voltage logic levels, which makes it easy to interface with other logic families.

Applications

The NL27WZ32USG is a versatile component that can be used in a myriad of applications. It is particularly useful in portable devices due to its low power consumption. Other common applications include computing devices, data communication equipment, consumer electronics, and any system that requires a reliable logic gate operation. Its high-speed and wide voltage range also make it suitable for interfacing with microcontrollers, FPGAs, and other digital signal processors.
