ON Semiconductor NL17SZ16XV5T2 Single Inverter

The ON Semiconductor NL17SZ16XV5T2 is a high-performance single inverter designed to meet the demands of modern electronic circuits. This component is part of ON Semiconductor's NL17SZ series, which is renowned for its low power consumption and high speed operation. The NL17SZ16XV5T2 is particularly suitable for portable and battery-powered applications, where power efficiency is critical.

Constructed with advanced silicon gate CMOS technology, the NL17SZ16XV5T2 offers a compelling mix of power-saving and speed-enhancing features. It operates with a supply voltage range from 1.65V to 5.5V, which allows for use in systems that require a wide range of operating voltages. This flexibility makes it an excellent choice for interfacing with both CMOS and TTL logic levels.

The device boasts a high drive output current, which is typically ±24 mA at 3.3V. This strong drive capability enables the NL17SZ16XV5T2 to drive larger loads with ease, making it a versatile component for various applications. Additionally, the inverter has a low static power consumption of only 10 nA (max) at 25°C, contributing to the overall energy efficiency of the systems in which it is used.

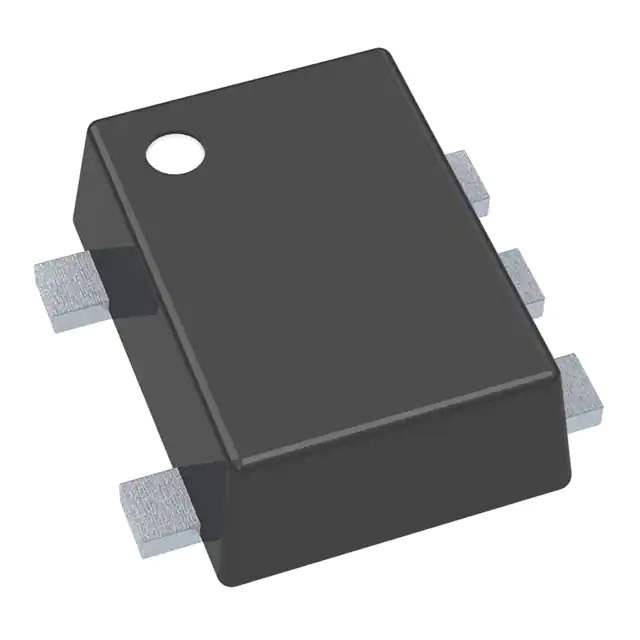

ON Semiconductor's NL17SZ16XV5T2 comes in a compact SOT-353-5 package, which is ideal for space-constrained applications. The small footprint of the package allows for high-density PCB layouts, which is beneficial for miniaturized electronic devices. Furthermore, the device is characterized for operation from -55°C to +125°C, ensuring reliable performance across a wide temperature range, which is crucial for industrial and automotive applications.

With its fast propagation delay time and balanced rise and fall times, the NL17SZ16XV5T2 ensures high-speed operation, making it suitable for high-frequency signal processing tasks. The component is also designed with input and output over-voltage protection, providing robustness against transient conditions that might otherwise damage the device.

In summary, the ON Semiconductor NL17SZ16XV5T2 is a versatile and efficient single inverter that offers excellent performance for a wide array of applications. Its low power consumption, high-speed operation, and compatibility with various logic levels make it a valuable addition to any electronic circuit design.
