ON Semiconductor NL17SZ08XV5T2 Logic Gate

The ON Semiconductor NL17SZ08XV5T2 is a high-performance, single 2-input AND gate designed to meet the requirements of complex digital systems. This advanced logic gate is part of ON Semiconductor's extensive range of logic devices, known for their reliability and efficiency in processing digital signals. The NL17SZ08XV5T2 is a versatile component that can be used in a variety of applications, ranging from simple logic operations to more complex computational tasks within electronic circuits.

Manufactured with precision, the NL17SZ08XV5T2 is built on a silicon gate CMOS process, which ensures low power consumption while maintaining high-speed operation. This makes it an ideal choice for battery-operated and power-sensitive applications. The device also features a wide operating voltage range from 1.65V to 5.5V, providing design flexibility and compatibility with both low-voltage and standard logic level systems.

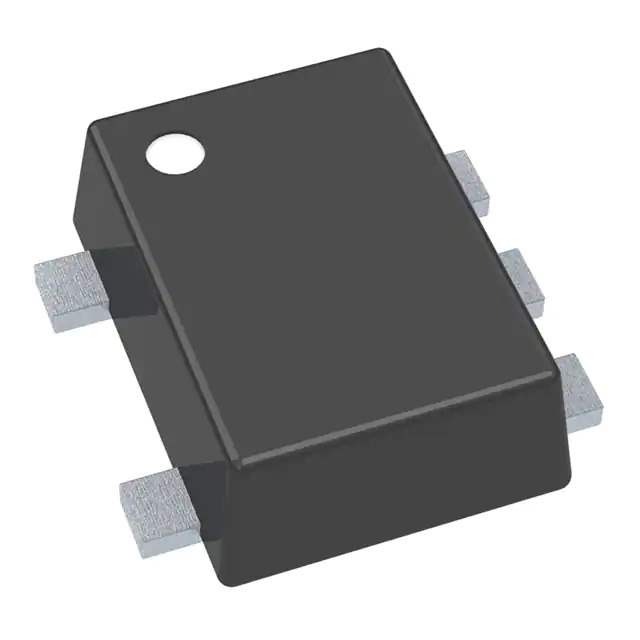

The NL17SZ08XV5T2 comes in a compact 5-pin SC-88A (SOT-353) package, which is designed for surface-mount technology (SMT), making it suitable for high-density PCB designs. Its small footprint allows for efficient use of board space without compromising performance.

Key features of the NL17SZ08XV5T2 include:

• High-speed AND logic operation
• Operating voltage range: 1.65V to 5.5V
• Low static power consumption: ICC = 1µA maximum at TA = 25°C
• High noise immunity characteristic of CMOS devices
• Output drive capability: 4mA at 5V
• Compact 5-pin SC-88A (SOT-353) package

With its robust design, the NL17SZ08XV5T2 is also characterized by its high noise immunity, which is a critical feature in environments with potential electrical interference. The output drive capability of 4mA at 5V allows the device to drive other logic inputs with ease, providing a reliable signal transmission within the circuit.

Whether you are designing consumer electronics, communication devices, or complex computing systems, the ON Semiconductor NL17SZ08XV5T2 offers a perfect blend of power efficiency, speed, and compactness to meet the stringent requirements of modern digital applications.
