The ON Semiconductor NL17SG32P5T5G is a versatile and high-performance single 2-input OR gate designed to meet the requirements of a wide range of electronic applications. This device is part of ON Semiconductor's advanced CMOS logic family, delivering the perfect balance between speed and power consumption.

Key Features

• Advanced High-Speed CMOS Technology: The NL17SG32P5T5G is fabricated with the latest CMOS technology, ensuring high-speed operation while maintaining low power dissipation.
• Low Power Consumption: With a typical quiescent current of only 1 µA, this OR gate is an ideal choice for power-sensitive applications.
• High Noise Immunity: The device boasts a significant noise immunity level, making it suitable for use in electrically noisy environments.
• Wide Operating Voltage Range: It operates over a voltage range of 1.65V to 5.5V, accommodating various logic levels and making it compatible with a broad spectrum of other logic devices.

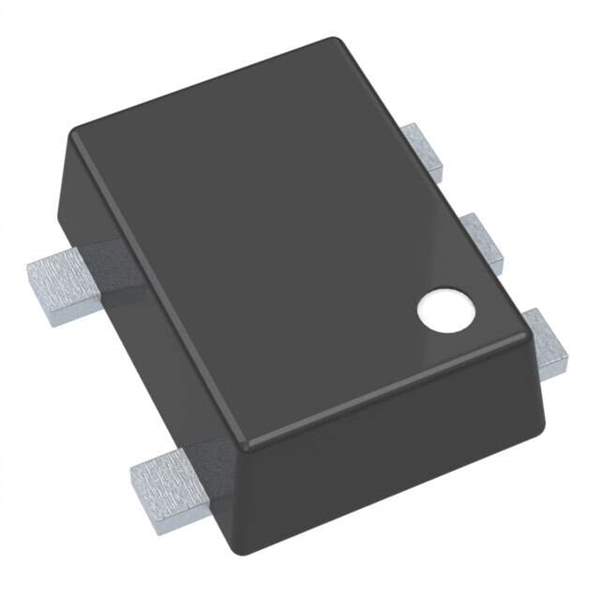

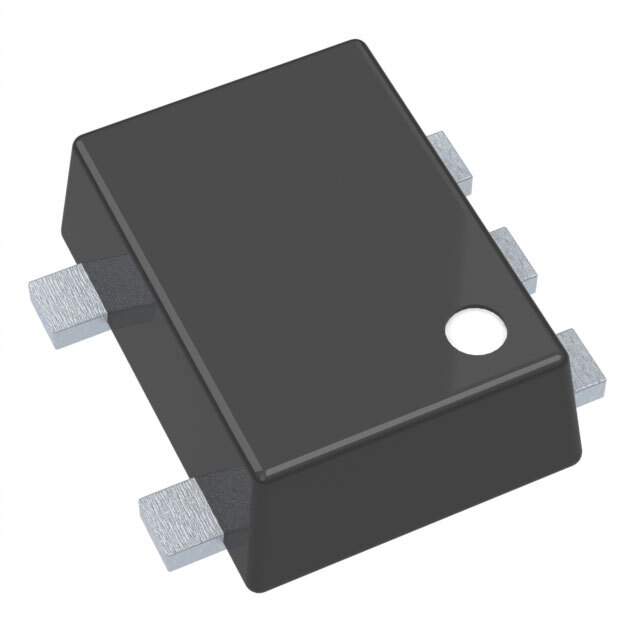

• Compact Packaging: The NL17SG32P5T5G comes in a space-saving SC−88A (SOT−353) package, which is ideal for applications where board space is at a premium.

Applications

The NL17SG32P5T5G is suitable for a variety of applications, including but not limited to:

• Portable Devices
• Power Management Systems
• Computing Devices
• Communication Equipment
• Consumer Electronics

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NL17SG32P5T5G is no exception. It is designed and manufactured to the highest standards, ensuring reliable performance even in the most demanding conditions. The device is also RoHS compliant, adhering to environmental standards and regulations.

Conclusion

Whether you are designing a new system or upgrading an existing one, the ON Semiconductor NL17SG32P5T5G single 2-input OR gate offers the performance, efficiency, and reliability that engineers and designers need to create innovative solutions. Its combination of advanced technology, low power consumption, and compact packaging makes it an excellent choice for a wide array of electronic applications.
