The NCV7720DQR2G is a versatile and robust integrated circuit produced by ON Semiconductor, designed specifically for automotive applications. This high-performance product is part of ON Semiconductor's extensive portfolio of automotive-grade components, ensuring reliability and compliance with industry standards.

Key Features

• Octal Serial Switch: The NCV7720DQR2G features eight low RDS(on) NMOS channels, which are capable of controlling various loads such as bulbs, LEDs, motors, and other automotive-related actuators.
• Enhanced Protection: With built-in open load detection in on and off state, short-circuit protection, and over-temperature shutdown, the device ensures high levels of safety and reliability under harsh automotive conditions.
• Flexible Control: The device can be controlled via a 16-bit SPI interface, allowing for a seamless integration into automotive control systems and providing enhanced control over the connected loads.
• Extended Temperature Range: The NCV7720DQR2G operates effectively across a wide temperature range from -40°C to 150°C, making it suitable for the demanding thermal environments found in automotive applications.

Applications

The NCV7720DQR2G is primarily designed for automotive applications that require the direct control of low-power loads. Its robustness and flexibility make it an ideal choice for:

• Automotive lighting systems
• Body Control Modules (BCM)
• Engine Control Units (ECU)
• Power distribution modules

Quality and Environmental Compliance

ON Semiconductor is committed to providing environmentally friendly solutions. The NCV7720DQR2G is compliant with the AEC-Q100 standard for automotive quality, ensuring that it meets the rigorous requirements for automotive electronic components. Additionally, the device is lead-free and RoHS compliant, minimizing the environmental impact and meeting global regulatory requirements for hazardous substances.

Package and Availability

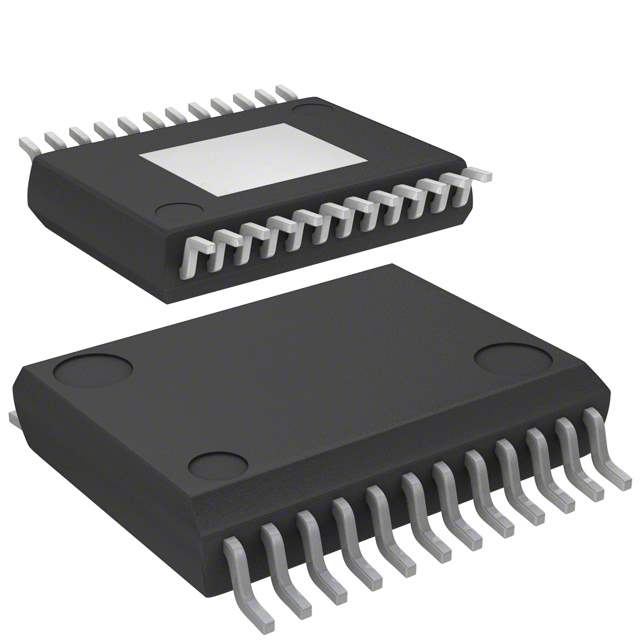

The NCV7720DQR2G is offered in a QSOP-24 package, providing a compact footprint for space-constrained automotive applications. For detailed product specifications, technical documentation, and information on ordering and availability, please refer to the ON Semiconductor website or contact their sales and support team.
