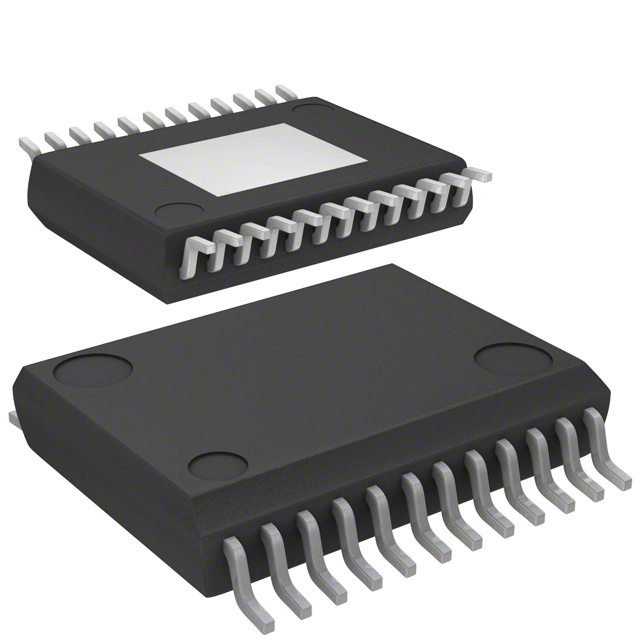

The NCV7719DQAR2G from ON Semiconductor is a highly integrated octal half-bridge driver designed to drive a wide range of loads in automotive and industrial applications. This versatile chip is capable of driving inductive, capacitive, and resistive loads such as motors, solenoids, and lamps with excellent efficiency and control.

Key Features

• Multiple Channel Outputs: The device includes eight half-bridge drivers, which can be controlled independently or in pairs to drive four full-bridge (H-bridge) configurations.
• High Voltage Operation: Its operation is optimized for a voltage range of 5.5V to 28V, making it suitable for a variety of automotive applications.
• Current Monitoring: Each half-bridge contains integrated current sensing, providing feedback for advanced control strategies and diagnostics.
• Protection Features: The NCV7719DQAR2G is equipped with robust protection features including overcurrent, overtemperature, undervoltage, and overvoltage protection, ensuring reliable operation under adverse conditions.
• SPI Interface: A serial peripheral interface (SPI) is used for control and diagnostics communication, allowing for precise control over the device's functions.
• Low Power Mode: An innovative low power mode significantly reduces current consumption when the device is not actively driving loads.

Applications

The flexibility and robustness of the NCV7719DQAR2G make it an ideal choice for a variety of applications, including:

• Automotive body control such as power seat and window lift systems
• DC motor control in industrial automation
• Robotics actuator drivers
• LED lighting control

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the NCV7719DQAR2G is no exception. It is designed to meet the stringent requirements of the automotive industry, including AEC-Q100 qualification, ensuring performance and longevity in harsh automotive environments.

With its comprehensive feature set and robust design, the NCV7719DQAR2G from ON Semiconductor is a versatile solution that offers designers the flexibility and reliability needed for sophisticated control applications.
