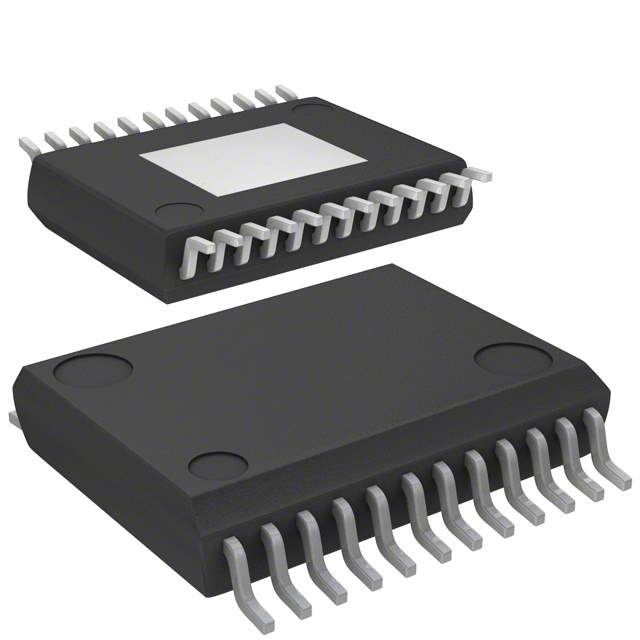

ON Semiconductor NCV7708FDQR2G Product Overview

The NCV7708FDQR2G is a versatile and robust automotive-grade hex half-bridge driver designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This high-performance product is engineered to meet the stringent requirements of automotive applications, providing a reliable and efficient solution for driving a wide range of inductive loads such as solenoids, valves, and small DC motors.

Key Features

• Integrated Control: The device integrates six half-bridge drivers that can be controlled independently or in combination, offering flexibility in controlling various load types.
• High Voltage Operation: It is capable of operating at a supply voltage range from 5.5V up to 28V, accommodating a broad spectrum of automotive power systems.
• High Current Capability: Each half-bridge of the NCV7708FDQR2G can deliver up to 1A of continuous current, making it suitable for driving moderate loads.
• Thermal Protection: The device includes overtemperature shutdown protection, which helps to prevent damage from overheating, ensuring longevity and reliability.
• Diagnostic Features: With integrated diagnostics, the device can provide feedback on the status of the load, supply voltage, and temperature, facilitating system monitoring and fault detection.
• SPI Interface: The Serial Peripheral Interface (SPI) allows for digital control and diagnostics, enabling easy integration with microcontrollers and other digital systems.
• Automotive Qualification: The NCV7708FDQR2G is AEC-Q100 qualified, indicating that it meets the automotive industry's rigorous reliability standards.

Applications

The NCV7708FDQR2G is ideally suited for a variety of automotive applications, including but not limited to:

• Engine Control Units (ECUs)
• Body Control Modules (BCMs)
• Active Grille Shutters
• Headlight Leveling
• Small DC Motors Control

As a product of ON Semiconductor, the NCV7708FDQR2G stands out for its quality, durability, and performance, making it a top choice for automotive engineers and designers looking to enhance the functionality and reliability of their systems.

With its advanced features and robust design, the NCV7708FDQR2G is a testament to ON Semiconductor's commitment to innovation and excellence in the automotive industry.
