The ON Semiconductor NCP5106BPG is a high voltage power MOSFET driver designed for high-speed applications. It is specifically engineered to drive both the high-side and low-side N-channel power MOSFETs in a half-bridge configuration. This integrated circuit (IC) is a critical component for a wide range of power conversion applications, including switch-mode power supplies, motor control, and inverter circuits.

Key Features

• High Voltage Range: The driver is capable of handling voltages up to 600V, making it suitable for various high voltage applications.
• Independent High and Low Side Drive Outputs: This feature allows for better control and flexibility in designing half-bridge power stages.
• High Drive Current: With a source and sink current capability of 200 mA and 350 mA respectively, the NCP5106BPG can effectively switch power MOSFETs at high speeds.
• Under-Voltage Lockout (UVLO): This safety feature ensures that the driver operates only when the supply voltage is sufficient, protecting the MOSFETs from insufficient gate voltage.
• Extended Temperature Range: The device operates over an industrial temperature range, ensuring reliability in a variety of environments.
• Low Propagation Delay: The IC offers fast propagation delays, which is crucial for high-frequency operation and reduces switching losses.

Applications

• DC-DC Converters
• AC-DC Switch Mode Power Supplies
• Motor Drives
• Inverters
• Class D Switching Amplifiers

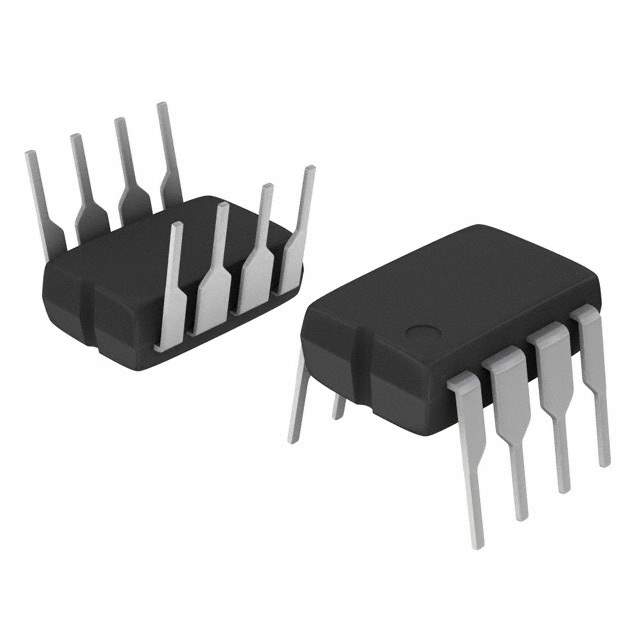

The NCP5106BPG comes in a 8-pin PDIP package, which is widely accepted in the industry and is suitable for through-hole mounting, providing ease of integration into various circuit designs. Its robust design and comprehensive feature set make the NCP5106BPG from ON Semiconductor an excellent choice for designers looking to enhance the performance and reliability of their high voltage switching applications.
