ON Semiconductor NCP13992ACDR2G High-Performance Controller

The ON Semiconductor NCP13992ACDR2G is a cutting-edge high-performance resonant mode controller designed specifically for use in power supply units that require high efficiency and reliability. This advanced controller is particularly suitable for applications such as server power supplies, telecommunication equipment, and flat-panel display power supplies, where energy efficiency and compact size are crucial.

At the heart of the NCP13992ACDR2G is a sophisticated control algorithm that enables zero-voltage switching (ZVS) with reduced electromagnetic interference (EMI). The device operates at a high switching frequency that can be adjusted externally via a resistor or synchronized to an external clock, allowing for a flexible design that can be tailored to specific application needs.

The NCP13992ACDR2G incorporates a range of features that enhance its performance and safety. One of the standout features is its brown-out protection, which ensures the power supply continues to operate safely during periods of low input voltage. Additionally, the controller has overcurrent protection and overtemperature protection to safeguard the system from potential damage caused by abnormal operating conditions.

Designed for optimal efficiency, the NCP13992ACDR2G utilizes a half-bridge resonant converter topology, which reduces power losses and improves overall system efficiency. This is particularly important for applications where energy consumption is a significant concern. The device also supports burst mode operation, which can significantly reduce power consumption at light loads, further enhancing its efficiency credentials.

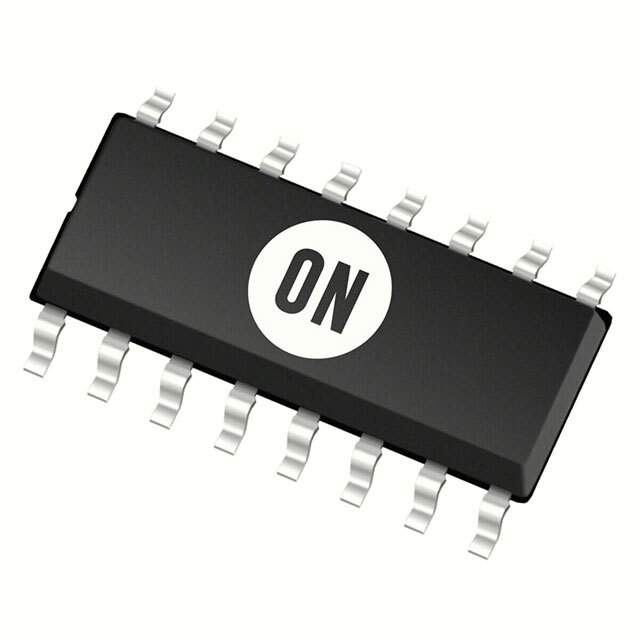

For ease of integration into various designs, the NCP13992ACDR2G is available in a compact SOIC-16 package. This small footprint allows designers to create more compact power supplies without compromising on performance or features. The controller is also characterized by a wide operating temperature range, making it suitable for use in environments with varying thermal conditions.

In summary, the ON Semiconductor NCP13992ACDR2G resonant mode controller is an ideal solution for designers looking to create efficient, reliable, and high-performance power supplies. With its advanced features and flexible design options, it stands out as a top choice in its class.
