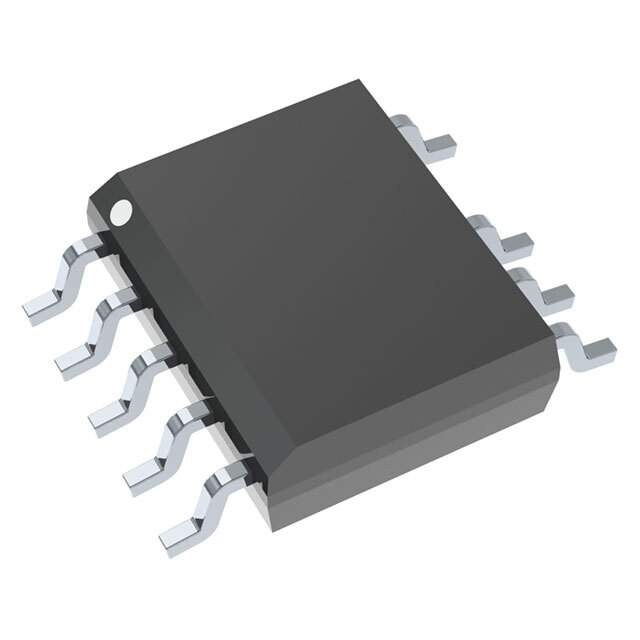

Introducing the NCP1342ANACECD1R2G from ON Semiconductor

ON Semiconductor's NCP1342ANACECD1R2G is a cutting-edge PWM controller that integrates numerous features to offer a high-performance power supply solution. Designed for AC-DC converters and off-line power supplies, this product is an ideal choice for engineers looking to enhance efficiency, reliability, and power density in their applications.

The NCP1342ANACECD1R2G leverages a quasi-resonant mode operation at high power levels to minimize switching losses and improve efficiency. As the load decreases, it smoothly transitions to a frequency foldback mode, further reducing power consumption and ensuring excellent light-load efficiency. This characteristic is particularly beneficial in applications that demand energy-saving features, such as consumer electronics and office equipment.

One of the standout features of this device is its built-in brown-out protection, which safeguards the power supply during conditions of undervoltage. This ensures that the power supply continues to operate safely and reliably even when input voltage levels fluctuate, which is crucial for maintaining the performance of the end application.

The NCP1342ANACECD1R2G also incorporates an adjustable overcurrent protection (OCP) that allows designers to set precise current limits to protect the power supply and the load. Additionally, the device includes an Overvoltage Protection (OVP) feature that prevents excessive voltages from damaging sensitive electronic components.

With a wide VCC range and a Jittered Switching Frequency, this PWM controller is designed to reduce EMI emissions, a critical factor in passing regulatory compliance tests. The NCP1342ANACECD1R2G's high-frequency operation also enables the use of smaller passive components, which contributes to a more compact power supply design.

ON Semiconductor's commitment to environmental sustainability is evident in the NCP1342ANACECD1R2G, which is both RoHS compliant and halogen-free. This demonstrates the company's dedication to producing products that not only meet the highest performance standards but also minimize environmental impact.

In summary, the NCP1342ANACECD1R2G from ON Semiconductor is an advanced PWM controller that offers enhanced efficiency, robust protection features, and EMI reduction capabilities, making it a smart choice for a wide range of power supply applications.
