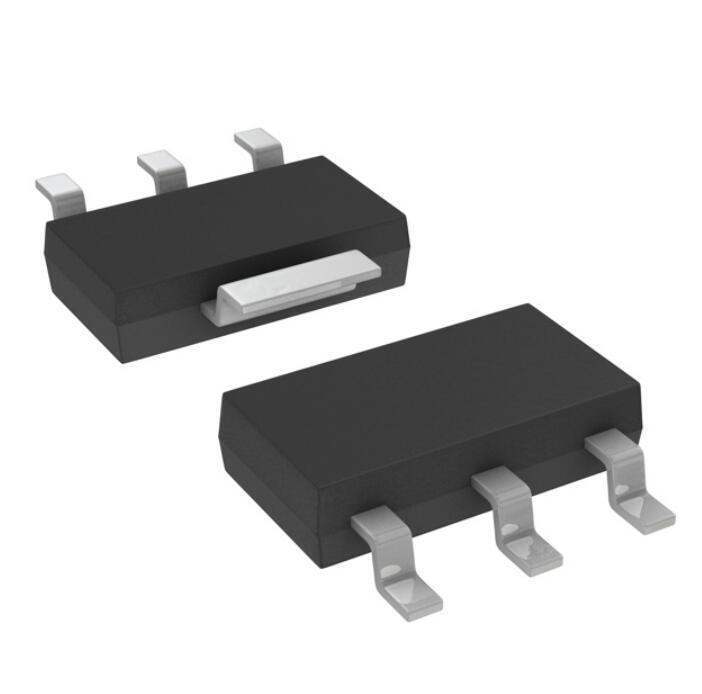

ON Semiconductor NCP1012ST130T3 Self-Supplied Monolithic Switcher

The NCP1012ST130T3 from ON Semiconductor represents a significant advancement in the field of power management. This self-supplied monolithic switcher integrates a fixed-frequency current-mode controller with a 700 V MOSFET. Designed for robust and compact power supplies, it is an ideal solution for a wide range of applications, including auxiliary power supplies and standby power for consumer electronics, home appliances, personal care gadgets, and industrial equipment.

Key Features

• High-Voltage Integration: The device's 700 V MOSFET allows for direct connection to high-voltage supplies, reducing the need for external components and simplifying design.
• Fixed-Frequency Operation: Operating at a fixed frequency of 130 kHz, the NCP1012ST130T3 ensures predictable performance and simplifies the design of the magnetic components.
• Current-Mode Control: This feature provides excellent output regulation and fast transient response, enhancing the performance of the power supply.
• Self-Supply Capability: The switcher does not require a separate bias voltage, as it is capable of extracting power directly from the high-voltage input, further reducing component count and complexity.
• Frequency Jittering: Reduces EMI emissions and eliminates the need for additional filtering components, which can be costly and space-consuming.
• Over-temperature, Over-current, and Over-voltage Protections: These built-in protections ensure reliable operation and longevity of the power supply by preventing damage from abnormal operating conditions.

Applications

The versatility of the NCP1012ST130T3 makes it suitable for a broad spectrum of applications. It is particularly well-suited for:

• AC-DC adapters for cell phones and personal electronics
• Standby and auxiliary power supplies for PCs, TVs, and home audio systems
• Power supplies for white goods and home appliances
• Industrial power supplies where compact size and high efficiency are required

With its integrated features and protections, the NCP1012ST130T3 from ON Semiconductor offers a streamlined solution for power supply design, ensuring efficient, reliable, and cost-effective operation.
