The NB3N551DR2G is a high-performance clock multiplier engineered by ON Semiconductor, designed to meet the stringent demands of modern digital systems. This integrated circuit is adept at generating a stable and precise output clock frequency that is a multiple of the input clock frequency. The device is an ideal solution for applications requiring low jitter and high-frequency multiplication, such as networking, telecommunications, and digital signal processing.

The NB3N551DR2G operates from a single 3.3V supply and supports an input frequency range of 5MHz to 160MHz, providing a versatile range of multiplication factors. The output frequency can be set up to 500MHz, depending on the input frequency and the selected multiplication factor. This flexibility makes it suitable for a broad array of applications where different clocking speeds are required.

This clock multiplier features a fully integrated Phase-Locked Loop (PLL) with a voltage-controlled oscillator (VCO), providing precise frequency synthesis and minimal phase noise. The PLL design ensures that the output clock is synchronized with the input reference clock, maintaining signal integrity and reducing timing errors in high-speed digital systems.

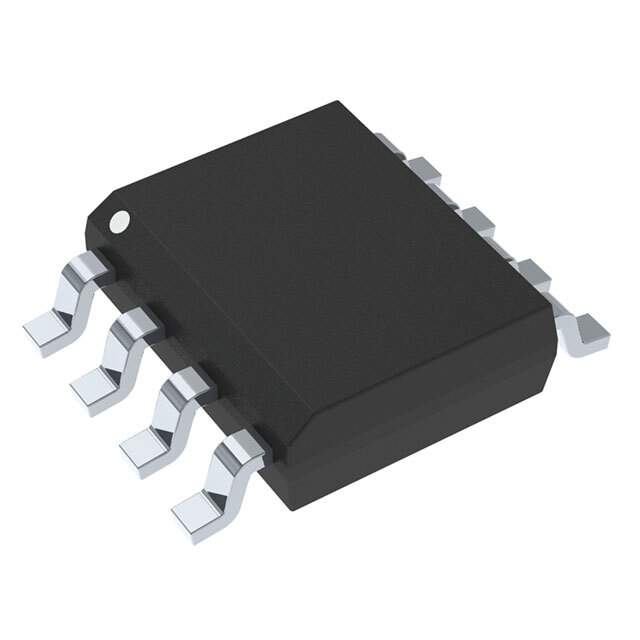

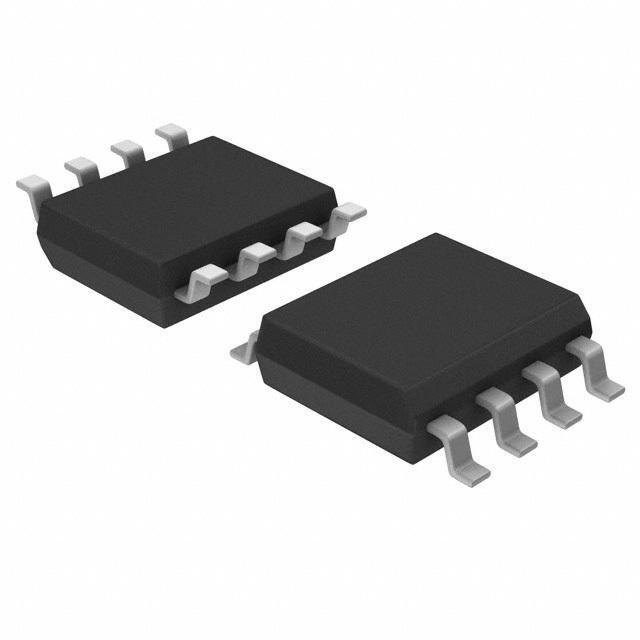

The NB3N551DR2G is available in a compact 8-pin SOIC package, making it a space-saving solution for densely packed PCBs. It is also characterized for operation from -40°C to +85°C, ensuring reliable performance across a wide range of environmental conditions. The device also includes a power-down feature that reduces power consumption when the clock output is not required, aiding in energy-efficient design.

In summary, the ON Semiconductor NB3N551DR2G is a versatile and reliable clock multiplier that offers a high degree of precision and stability for advanced electronic systems. Its integration of a robust PLL, low power consumption, and broad operating temperature range make it an excellent choice for designers looking to improve the performance and efficiency of their clock distribution networks.
