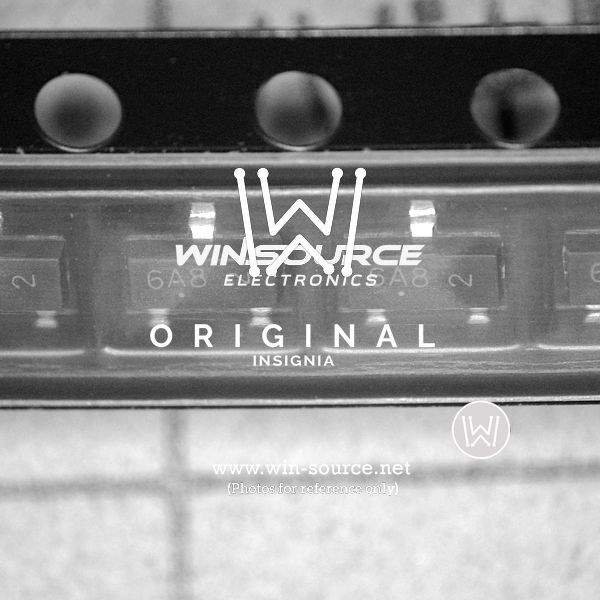

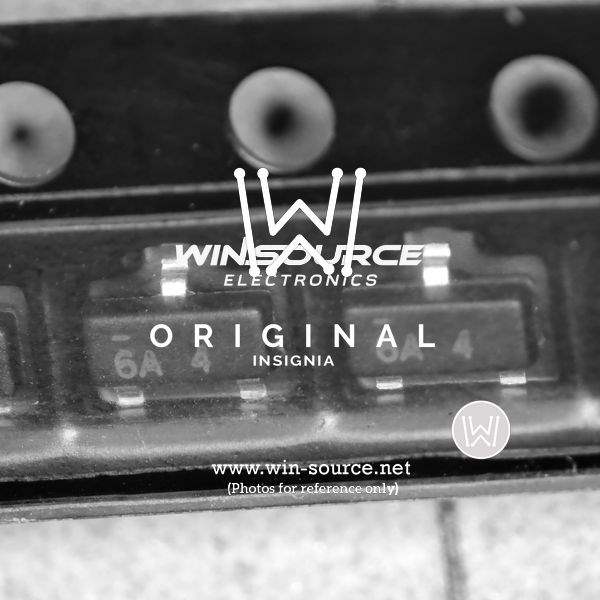

ON Semiconductor MMBZ6V8ALT1G Zener Diode

The ON Semiconductor MMBZ6V8ALT1G is a high-quality Zener diode designed for providing excellent voltage regulation with a nominal Zener voltage of 6.8V. This surface-mount device is packaged in a small SOT-23 configuration, making it suitable for compact circuit designs where space is at a premium.

Key Features:

• Zener Voltage: The device offers a precise Zener voltage of 6.8 volts, which is ideal for a range of voltage regulation applications.
• Power Dissipation: With a power dissipation of 225 mW, this Zener diode can handle a moderate amount of power, making it suitable for various electronic circuits.
• Package Type: The MMBZ6V8ALT1G comes in a SOT-23 package, which is a small and efficient surface-mount package, allowing for high-density PCB layouts.
• Operating Temperature Range: It operates effectively over a wide temperature range from -55°C to +150°C, ensuring reliability in diverse operating conditions.
• Low Leakage Current: It features a low leakage current, enhancing the overall efficiency of the device and making it an excellent choice for low-power applications.
• Planar Die Construction: The diode utilizes planar die construction, which provides a reliable and robust device capable of withstanding significant stress.

Applications:

The MMBZ6V8ALT1G Zener diode is versatile and can be used in various applications, including:

• Voltage regulation modules
• Overvoltage protection circuits
• Switching power supplies
• Consumer electronics
• Computing devices
• Telecommunication systems

With its precise voltage control and compact form factor, the ON Semiconductor MMBZ6V8ALT1G is an excellent choice for designers looking to integrate a reliable voltage regulator or protection element into their electronic designs. Its robustness and efficiency make it a go-to component for ensuring stable operation in a variety of electronic products.
