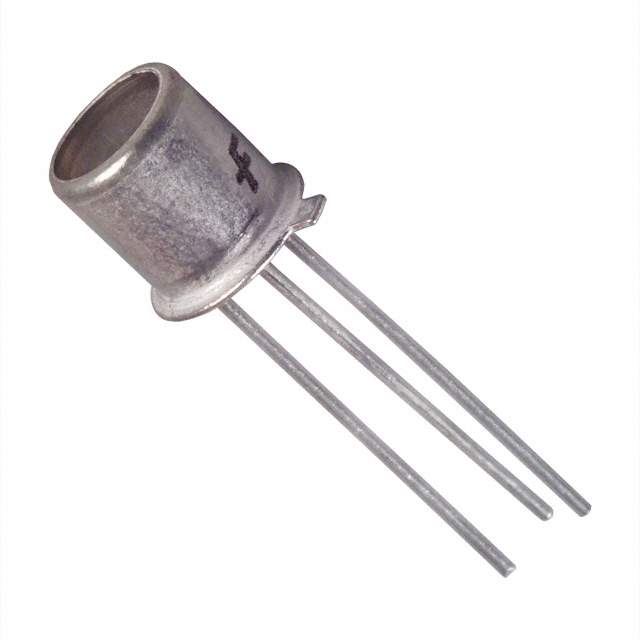

MCT4R

Part No MCT4R
Manufacturer ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description RELIABILITY CONDITIONED HERMETIC PHOTOTRANSISTOR OPTOCOUPLER | OPTOISO 1KV TRANSISTOR TO206AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer ON Semiconductor
Status Obsolete
Voltage - Isolation 1000VDC
Current Transfer Ratio (Minimum) 15% at 10mA
Input Type DC
Output Type Transistor
Maximum Output Voltage 30V
Voltage - Forward (Vf) 1.3V
Current - DC Forward (If) (Maximum) 40mA
Vce Saturation (Maximum) 500mV
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-206AA, TO-18-3 Metal Can
Supplier Device Package TO-18
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1221347-MCT4R
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCT4R CAD Model

Description

Introducing the MCT4R from ON Semiconductor

ON Semiconductor's MCT4R is a robust, high-performance optoisolator designed for a variety of applications requiring efficient signal isolation. This device is a crucial component for systems where electrical isolation is necessary to protect sensitive microcontrollers, logic circuits, and users from high voltages typically present in industrial, telecom, and data communication systems.

Key Features

  • High Isolation Voltage: The MCT4R offers an impressive isolation voltage, ensuring that the input signal is effectively separated from the output, which enhances safety and system reliability.
  • High Current Transfer Ratio (CTR): With a high CTR, this optocoupler provides better performance in digital data transmission and ensures a more reliable signal transfer between input and output.
  • Compact DIP Package: The device comes in a Dual In-line Package (DIP), which is ideal for designs where space is at a premium, without compromising on electrical performance.
  • Industry Standard Pin Configuration: The MCT4R is designed to fit seamlessly into existing designs, thanks to its industry-standard pin configuration, making it easy to integrate without significant board changes.
  • Wide Operating Temperature Range: It is capable of operating over a wide temperature range, making it suitable for harsh industrial environments.

Applications

The MCT4R is versatile and can be used in a variety of applications, such as:

  • Isolated line receiver
  • Computer peripheral interfaces
  • Microprocessor system interfaces
  • Digital logic ground isolation
  • Power supply regulators
  • Replacement for relays and transformers
  • Motor control circuits

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MCT4R is no exception. It is manufactured to the highest standards, ensuring that it meets the rigorous demands of industrial and commercial use. With its excellent isolation capabilities and high data transfer efficiency, the MCT4R from ON Semiconductor is a reliable choice for designers looking to enhance their systems' safety and performance.
