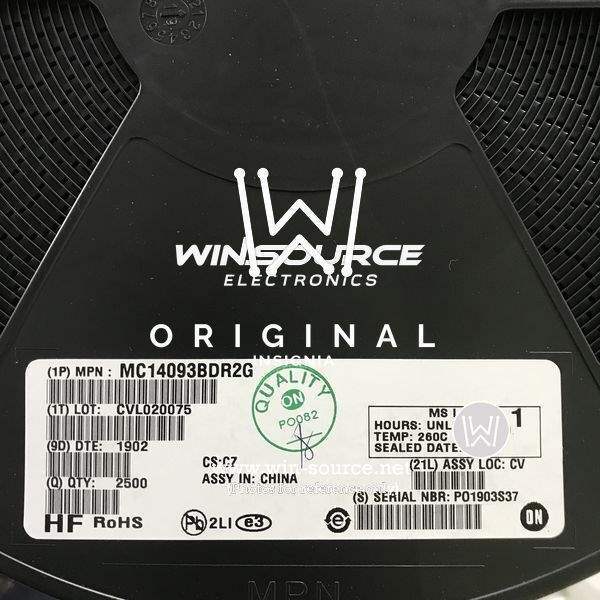

ON Semiconductor MC14093BDR2G Quadruple 2-Input NAND Schmitt Trigger

The ON Semiconductor MC14093BDR2G is a high-performance CMOS logic integrated circuit designed to operate as a quadruple 2-input NAND Schmitt trigger. This versatile component is a part of the MC14093 series and is engineered to deliver stable and reliable logic operations with the added benefit of Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times.

With its robust design, the MC14093BDR2G features a supply voltage range from 3V to 18V, providing the flexibility to be used in various applications that require different voltage levels. This wide operating range makes it an ideal choice for interfacing with both CMOS and LSTTL logic levels, as well as for battery-operated devices, automotive, and industrial control systems.

The device is packaged in a compact 14-pin SOIC package, making it suitable for space-constrained applications while ensuring ease of integration into a wide range of electronic circuits. The MC14093BDR2G also offers high noise immunity and low power consumption, which is critical for energy-efficient designs.

Each of the four independent NAND gates in the MC14093BDR2G has Schmitt-trigger inputs that provide hysteresis between the positive-going and negative-going input thresholds, which is particularly useful in applications where noise is present on the input signals. This feature ensures a cleaner, more stable output by reducing the possibility of multiple transitions as the input signal crosses the threshold level.

Moreover, the MC14093BDR2G is characterized for operation from -55°C to +125°C, ensuring reliable performance even in extreme environmental conditions. This temperature range makes it suitable for use in automotive applications and other harsh environments where temperature resilience is a necessity.

In summary, the ON Semiconductor MC14093BDR2G is a highly adaptable and efficient solution for digital logic applications requiring Schmitt trigger inputs. Its robust design, compatibility with multiple logic levels, and temperature resilience make it a dependable choice for designers looking to enhance the performance and reliability of their electronic systems.
