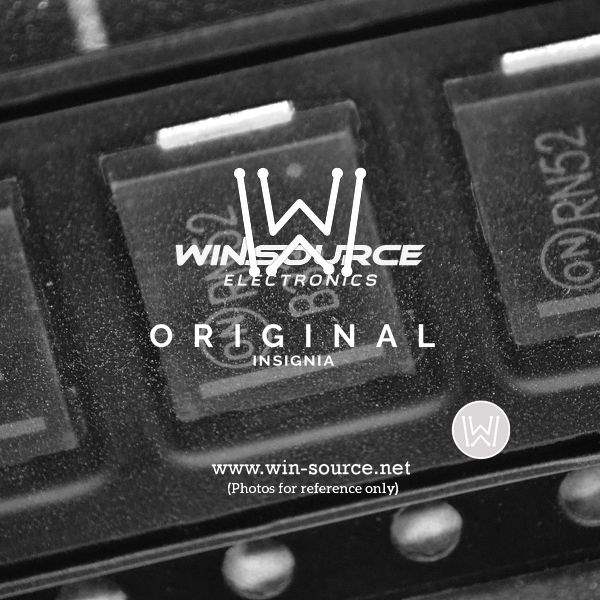

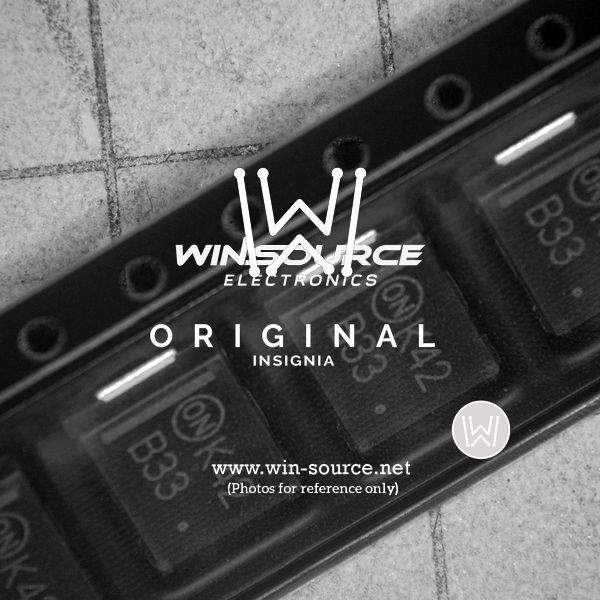

ON Semiconductor MBRS330T3G Schottky Power Rectifier

The ON Semiconductor MBRS330T3G is a robust Schottky power rectifier designed to offer efficient and reliable performance for a wide range of applications. This surface-mount component is housed in an SMB package, which is compact and suitable for automated assembly processes, making it a popular choice for high-volume production.

Key Features:

• Low Forward Voltage Drop: The MBRS330T3G boasts a low forward voltage drop, which enhances its efficiency by minimizing power loss during operation. This characteristic is particularly beneficial in applications where power conservation is critical.
• High Surge Capacity: With its capability to handle high surge currents, this diode is well-suited for applications that may experience occasional overcurrent conditions, providing reliable protection against potential damage.
• Guard-Ring for Stress Protection: The inclusion of a guard-ring enhances the device's ability to withstand voltage spikes and transients, ensuring long-term stability and reliability.
• High Junction Temperature: The device can operate at a junction temperature as high as 150°C, making it suitable for use in high-temperature environments.
• RoHS Compliant: The MBRS330T3G is compliant with RoHS (Restriction of Hazardous Substances) directives, making it an environmentally friendly choice for electronic product design.

Applications:

The ON Semiconductor MBRS330T3G is ideal for a variety of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

Technical Specifications:

• Package Type: SMB
• Peak Repetitive Reverse Voltage (Vrrm): 30V
• Average Rectified Forward Current (Io): 3A
• Operating Junction Temperature Range: -55°C to +150°C
• Storage Temperature Range: -65°C to +150°C

In summary, the ON Semiconductor MBRS330T3G Schottky Power Rectifier is a high-performance component that offers efficiency, durability, and environmental compliance. Its compact SMB package and ability to handle challenging electrical conditions make it a versatile choice for designers seeking a reliable power rectification solution.
