ON Semiconductor MBRS3201T3 Schottky Power Rectifier

The ON Semiconductor MBRS3201T3 is a robust Schottky power rectifier designed for high-efficiency power management applications. This state-of-the-art rectifier is a critical component for systems requiring low voltage drop and fast switching capabilities. It is particularly suitable for use in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Key Features

• Low Forward Voltage Drop: The MBRS3201T3 offers a low forward voltage drop, which minimizes power loss and improves efficiency, making it ideal for high-frequency operations.
• High Surge Capacity: With its capability to handle high surge currents, this rectifier ensures reliability and robust performance under stressful conditions.

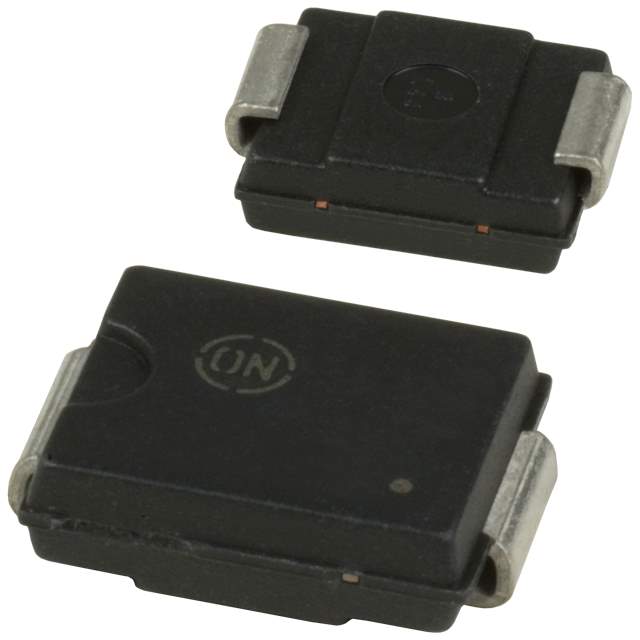

• Compact Design: The device is housed in a small, surface-mount package, which allows for a compact design and easy integration into various electronic assemblies.
• Guardring for Stress Protection: A patented guardring design is implemented to enhance the ruggedness and long-term reliability of the device by providing overvoltage protection.

Electrical Characteristics

• Forward Current: The MBRS3201T3 supports a maximum average forward rectified current of 3.0 A, making it suitable for handling moderate power requirements.
• Peak Repetitive Reverse Voltage: It can withstand a peak repetitive reverse voltage of 200 V, ensuring stability in applications with high voltage requirements.
• Operating Junction Temperature: The device operates effectively over a wide temperature range from -55°C to 150°C, catering to various environmental conditions.

Applications

The ON Semiconductor MBRS3201T3 is versatile and can be used in a wide array of applications including:

• Power Supply Units (PSUs)
• DC-DC Converters
• Automotive Applications
• Telecommunications Systems
• Portable Devices and Battery-Powered Circuits

In summary, the MBRS3201T3 from ON Semiconductor is an excellent choice for designers looking for a high-performance, reliable, and efficient Schottky power rectifier. Its combination of low forward voltage drop, high surge capacity, and thermal efficiency makes it a superior option for modern electronic applications.
