Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Series SWITCHMODE
Packaging Tray
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Average Rectified (Io) (per Diode) 150A
Voltage - Forward (Vf) (Maximum) @ If 790mV @ 150A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 800μA @ 60V
Mounting Chassis Mount

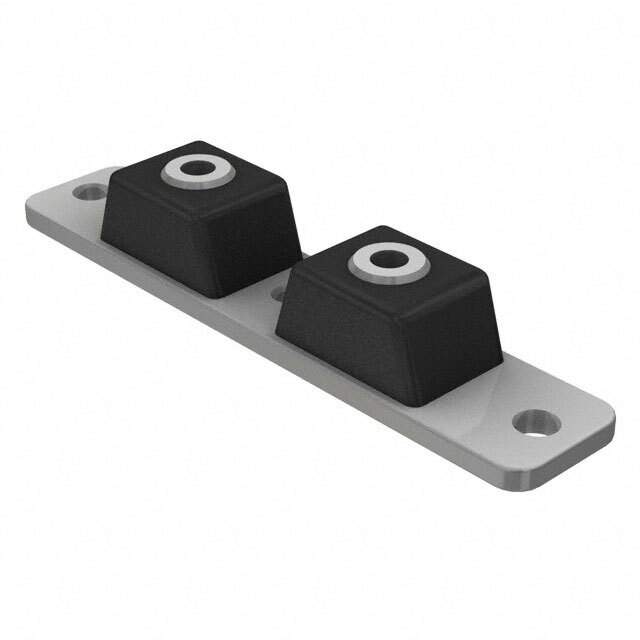

Package Powertap II
Manufacturer Package PowerTap II
Win Source Part Number 787592-MBRP30060CT
Popularity Medium
Supply and Demand Status Limited
Family Name MBRP30060C
Introduction Date December 26, 1995
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MBRP30060CT CAD Model

Description

Introducing the MBRP30060CT Schottky Rectifier from ON Semiconductor

The MBRP30060CT is a state-of-the-art power Schottky rectifier designed by ON Semiconductor, a leader in energy-efficient innovations. This robust component is engineered to deliver exceptional performance in applications requiring high efficiency, low power loss, and a compact footprint. Ideal for a wide range of power conversion systems, the MBRP30060CT is a perfect choice for designers looking to enhance system reliability and extend operational life.

Key Features

  • High Surge Capacity: The MBRP30060CT is capable of handling high surge currents, making it suitable for applications that experience frequent power surges or spikes.
  • Low Forward Voltage Drop: This rectifier boasts a low forward voltage drop, which translates to reduced power loss and improved efficiency in your system.
  • High Junction Temperature: With an operating junction temperature range of -65°C to 175°C, this device ensures reliable performance even under extreme thermal conditions.
  • TO-247 Package: Encased in a TO-247 package, the MBRP30060CT offers excellent power density and is easy to mount in various applications.
  • Dual Common-Cathode Schottky Rectifier: The dual diode configuration allows for use in a variety of circuit designs, including those requiring a common cathode arrangement.

Applications

The versatility of the MBRP30060CT makes it suitable for a broad range of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Power Factor Correction (PFC) circuits
  • DC-DC converters
  • Free-Wheeling diodes in converters and motor control circuits
  • Automotive environments where robustness and reliability are critical

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The MBRP30060CT is no exception, with its design and manufacturing processes geared towards delivering a reliable and long-lasting rectifier. By choosing the MBRP30060CT, designers can rest assured that their power systems will benefit from the durability and performance that ON Semiconductor is known for.

Conclusion

For power systems that demand high efficiency, thermal stability, and space-saving design, the MBRP30060CT Schottky Rectifier from ON Semiconductor is an excellent choice. Its superior surge capacity, low power loss, and versatile package design make it a valuable component in any high-performance power conversion application.
