ON Semiconductor's MBRB30H30CT-1G: A Robust Schottky Barrier Rectifier

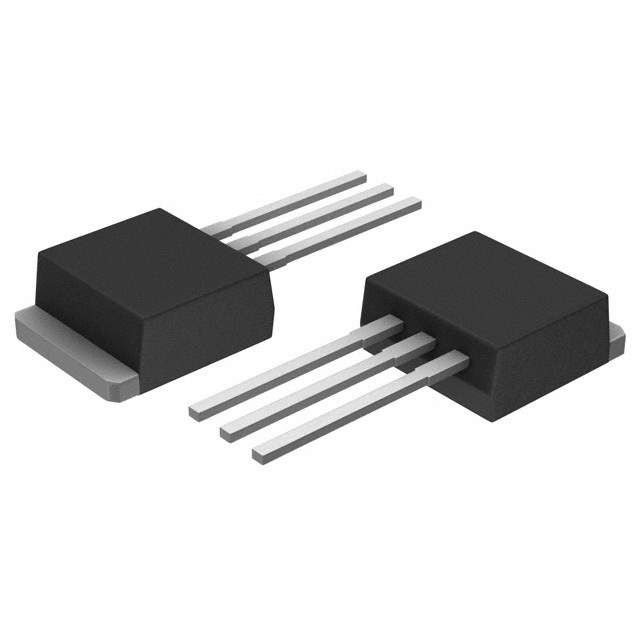

ON Semiconductor's MBRB30H30CT-1G is a state-of-the-art Schottky barrier rectifier designed for high-efficiency power management applications. This component is housed in a D2PAK package, which is known for its compact footprint and excellent power handling capabilities. The MBRB30H30CT-1G is a dual diode configured in a common cathode arrangement, making it suitable for high-frequency operation and switching power supplies where low forward voltage drop and fast switching are required.

The device features a maximum repetitive reverse voltage of 30V and a high forward continuous current of 30A, which ensures that it can handle significant power and current levels. The low forward voltage drop (typically 0.75V at 15A) contributes to reduced power loss and improved efficiency, which is crucial for energy-sensitive applications. Additionally, its power and thermal management are further enhanced by its ability to operate over a wide temperature range, from -55°C to 150°C, making it reliable in extreme conditions.

ON Semiconductor has designed the MBRB30H30CT-1G with ruggedness in mind. It features a guard ring for enhanced rugged transient performance, which protects the device from voltage spikes and other adverse conditions. This makes the MBRB30H30CT-1G an excellent choice for automotive applications, where reliability and durability are of utmost importance.

The MBRB30H30CT-1G also boasts a low reverse leakage current, which helps to maintain efficiency and reduce standby power consumption. This characteristic, along with its high surge capacity, makes it an ideal rectifier for power supply designs, including those in the automotive industry, solar inverters, and other energy-critical systems.

As part of ON Semiconductor's commitment to environmental sustainability, the MBRB30H30CT-1G is lead-free and RoHS compliant, minimizing the environmental impact of electronic components. This adherence to environmental standards reflects the growing demand for eco-friendly electronic solutions in the global market.

In summary, the MBRB30H30CT-1G from ON Semiconductor is a high-performance Schottky barrier rectifier that offers efficiency, reliability, and ruggedness for a wide range of power management applications. Its advanced features and compliance with environmental standards make it an excellent choice for designers looking to optimize their power systems.
