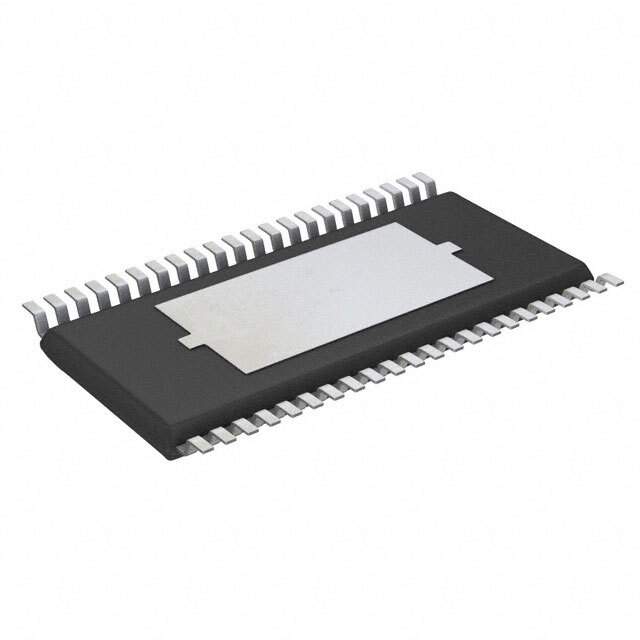

ON Semiconductor LV8111V-TLM-H Motor Driver

The LV8111V-TLM-H from ON Semiconductor is a high-performance, versatile motor driver that is designed to cater to a wide range of applications requiring precise motor control. This device is particularly suitable for driving small brushless DC motors, providing efficient and reliable operation in compact form factors.

Key Features

• Integrated Controller: The LV8111V-TLM-H integrates a pre-driver and PWM controller, ensuring smooth and efficient motor operation.
• High Voltage Tolerance: Capable of operating at a wide range of voltages, this motor driver is compatible with various power supplies, enhancing its versatility.
• Low Power Consumption: Designed for energy efficiency, the LV8111V-TLM-H keeps power consumption to a minimum, making it ideal for battery-powered applications.
• Protection Features: It includes several built-in protection features such as overcurrent protection, thermal shutdown, and under-voltage lockout, safeguarding the device and the motor from potential damage.
• Compact Package: Housed in a small package, the LV8111V-TLM-H is perfect for applications where space is at a premium.

Applications

The ON Semiconductor LV8111V-TLM-H is designed for use in a variety of applications, including but not limited to:

• Portable electronic devices
• Small household appliances
• Office automation equipment
• Battery-powered toys
• Healthcare devices

Technical Specifications

The LV8111V-TLM-H operates over a broad temperature range and is characterized by its robust performance. Its technical specifications include:

• Operating Voltage Range: 2.7V to 5.5V
• Output Current: Up to 1.2A
• Highly efficient PWM drive
• Lead-free, halogen-free, and RoHS compliant

In conclusion, the LV8111V-TLM-H from ON Semiconductor is a compact, efficient, and reliable solution for driving small brushless DC motors in a wide array of applications. Its integrated features and protection mechanisms ensure a high-performance operation that meets the demands of modern electronic devices.
