Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushless DC (BLDC)
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications Automotive
Output Current 1.3A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 5 V to 22 V
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 28-HSOP
Win Source Part Number 136225-LB1980JH-TLM-E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LB1980JH-TLM-E CAD Model

Description

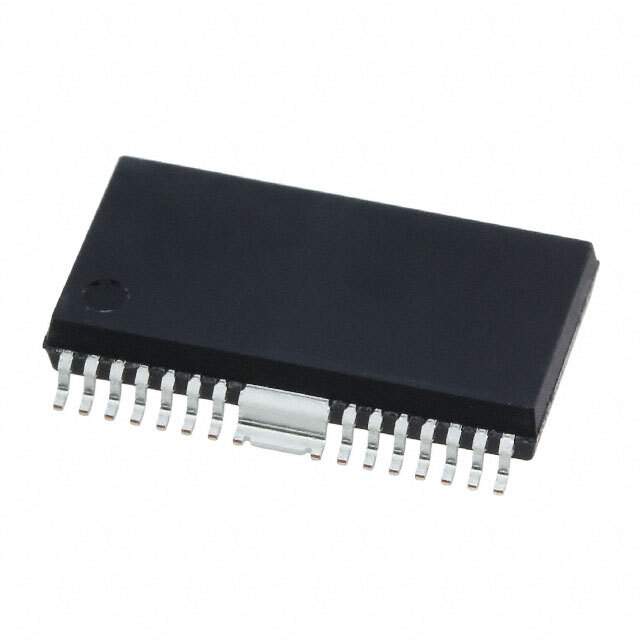

Introducing the LB1980JH-TLM-E from ON Semiconductor

The LB1980JH-TLM-E is a state-of-the-art motor driver IC designed by ON Semiconductor, a company renowned for its innovative and reliable semiconductor solutions. This product is specifically engineered to cater to the demanding requirements of precision motor control applications. It is an ideal choice for designers looking to enhance the performance and efficiency of their motor-driven systems.

Featuring a compact and robust design, the LB1980JH-TLM-E offers a versatile platform for driving small brush-type DC motors. The device is highly integrated, reducing the need for external components, which in turn minimizes the overall footprint and simplifies the circuit design. This integration includes a dual H-bridge configuration that allows for bidirectional control of one or two DC motors, making it perfect for applications such as robotics, automotive modules, and consumer electronics.

The LB1980JH-TLM-E is built with protection features that ensure long-term reliability and safety of the application. These include thermal shutdown, under-voltage lockout, and overcurrent protection. These safeguards help to prevent damage to the IC and the motor in adverse conditions, thereby enhancing the product's lifespan and reducing maintenance needs.

ON Semiconductor has designed the LB1980JH-TLM-E with a focus on power efficiency. The IC employs low on-resistance MOSFETs, which means it can deliver high current to the motor while maintaining a low power dissipation. This efficiency is crucial for battery-powered applications where extending the battery life is of paramount importance.

Additionally, the LB1980JH-TLM-E is designed to operate over a wide voltage range, accommodating various power supply specifications. This flexibility makes it suitable for a diverse array of products and markets. The package is also lead-free and RoHS compliant, aligning with global environmental standards and ensuring suitability for eco-conscious applications.

In summary, the LB1980JH-TLM-E from ON Semiconductor is a high-performance, efficient, and reliable solution for modern motor control applications. It offers the perfect blend of compactness, integration, and protection, making it an excellent choice for designers aiming to create advanced, robust, and energy-efficient motor control systems.
