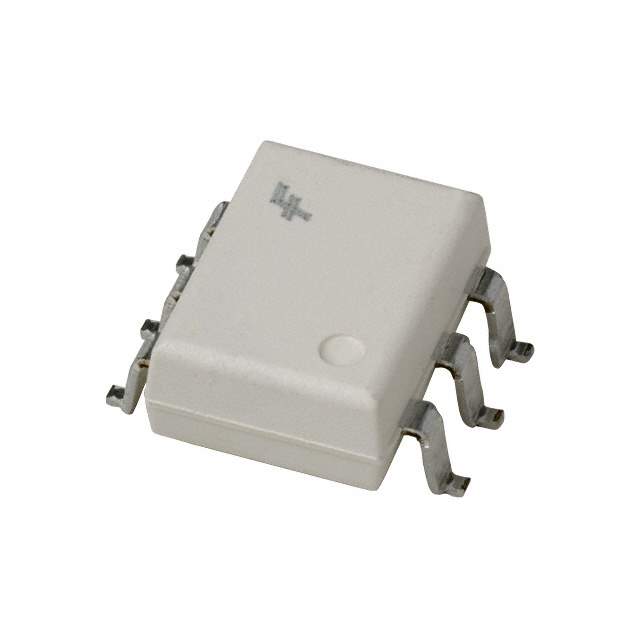

ON Semiconductor H11G2SD Optoisolator
The ON Semiconductor H11G2SD is a high-performance optoisolator designed to provide electrical isolation between a low-voltage, digital control signal and a high-voltage output circuit. This device is particularly suitable for applications that require reliable signal isolation to protect sensitive electronics from high voltages or noise. The H11G2SD is a solid choice for industrial control systems, signal processing, and other applications where signal integrity is paramount.
Key Features
- High Isolation Voltage: The H11G2SD offers an isolation voltage of 5300Vrms, providing a robust barrier against high voltage transients.
- Fast Switching Times: With a typical rise time of 2μs and a fall time of 2μs, this optoisolator is capable of fast operation suitable for high-speed signal transmission.
- High Collector-Emitter Voltage: The device supports a maximum collector-emitter voltage of 30V, allowing it to handle a wide range of signal levels.
- Industry-Standard 6-Pin DIP Package: The H11G2SD is encapsulated in a dual-in-line package for easy integration into a variety of circuit layouts.
- High Current Transfer Ratio (CTR): This optoisolator offers a CTR of 20% minimum, ensuring reliable signal coupling from input to output.
Applications
The versatility of the H11G2SD makes it ideal for a range of applications, including:
- DC motor controllers
- Industrial control systems
- Signal switching
- Power supply regulation
- PLC interfaces
Quality and Reliability
ON Semiconductor is known for its commitment to quality, and the H11G2SD is no exception. This optoisolator has been rigorously tested to meet the high standards expected of industrial electronic components. It offers a reliable solution for designers looking to enhance the safety and performance of their electronic systems.
For detailed specifications and application notes, designers and engineers are encouraged to consult the H11G2SD datasheet available on the ON Semiconductor website. This resource provides in-depth information to ensure the optoisolator is used to its full potential within electronic designs.
