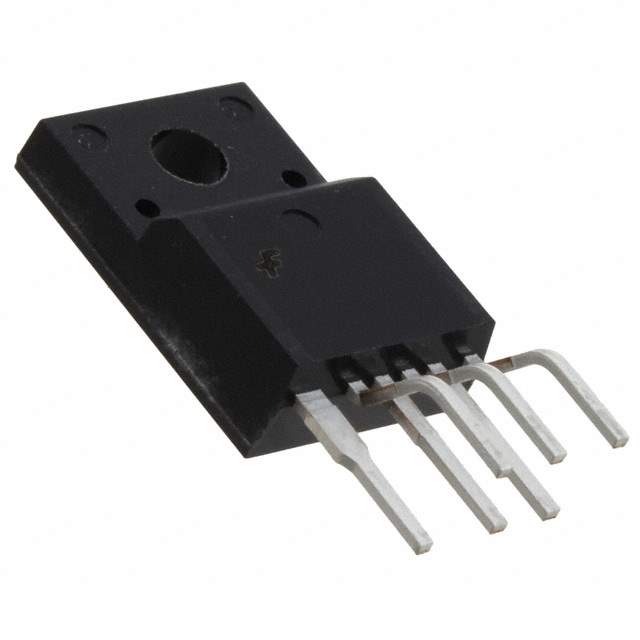

The FSGM0765RUDTU from ON Semiconductor is a cutting-edge power switch designed for high-performance power supply systems. This device is part of the Green Mode Fairchild Power Switch (FPS) series, which is renowned for its energy efficiency and reliability. The FSGM0765RUDTU is an ideal choice for switched-mode power supplies (SMPS) and is commonly used in applications such as adapters, DVD players, and televisions.

Key Features

• High Efficiency: The device features a quasi-resonant operation mode at normal operation, which significantly reduces switching losses and improves overall efficiency.
• Energy Saving: With its green-mode function, the FSGM0765RUDTU helps in reducing standby power consumption to meet stringent energy-saving standards.
• Advanced Burst-Mode Operation: This feature enables the power switch to operate under low power conditions, such as standby mode, without compromising performance.
• Over-Voltage Protection: The built-in over-voltage protection ensures that the power supply remains protected against sudden spikes in input voltage, thereby safeguarding connected devices.
• Overload Protection: The FSGM0765RUDTU automatically shuts off the output when an overload condition is detected, preventing damage to the power supply and the load.
• Thermal Shutdown: The thermal shutdown feature provides additional protection by turning off the device when it reaches an unsafe operating temperature.

Specifications

The FSGM0765RUDTU operates with an input voltage range suitable for universal AC input. It has an integrated high-voltage power MOSFET with a typical RDS(on) that ensures low conduction losses. The device also features a frequency modulation for attenuating electromagnetic interference (EMI), making it compliant with international EMI standards.

Applications

The ON Semiconductor FSGM0765RUDTU is versatile and can be used in a variety of applications where efficient power conversion is crucial. It is especially well-suited for designing power supplies that require an eco-friendly footprint without compromising on performance and safety.

Conclusion

With its robust feature set and compliance with international standards, the FSGM0765RUDTU from ON Semiconductor is an excellent choice for designers looking to create efficient, reliable, and safe power supply solutions.
