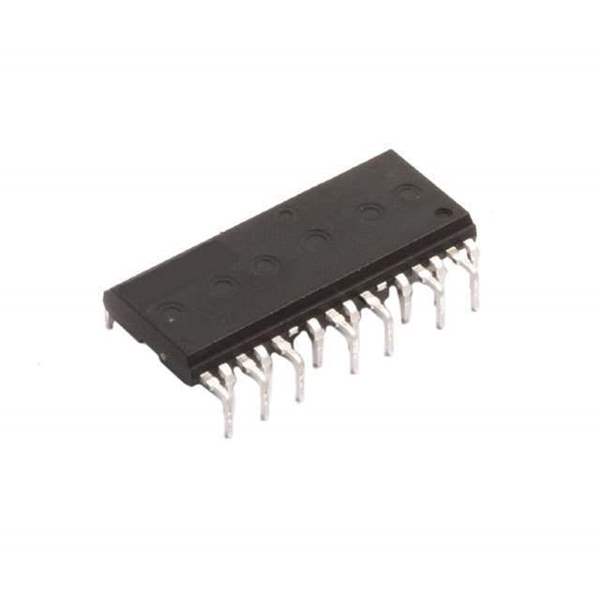

The FSB50825A, part of the Motion SPM® 5 series from ON Semiconductor, is a cutting-edge smart power module that has been meticulously designed to drive three-phase brushless DC motors in a highly efficient and compact package. This advanced module is a perfect solution for applications requiring low electromagnetic interference (EMI) and high power density, such as home appliances, fans, and other small industrial motors.
Key Features
- Integrated Design: The FSB50825A combines low RDS(on) MOSFETs and a gate driver in one package, reducing the footprint and simplifying the design process for engineers.
- High Voltage Rating: With a 250V rating, this module is capable of handling high voltage applications, ensuring reliability and robustness in demanding environments.
- Optimized for Efficiency: The module features a low-loss, high-speed IGBT/FWD freewheeling diode combination, which provides excellent thermal performance and improved efficiency.
- Advanced Protection Features: The FSB50825A includes under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown (TSD), enhancing the safety and longevity of your application.
- Easy to Use: An integrated bootstrap diode and dedicated VS pins for each phase simplify PCB layout and reduce external component count.
Applications
The FSB50825A is versatile and can be used in a wide range of applications, including but not limited to:
- Refrigerator compressors
- Air conditioner fans
- Washing machine drum drives
- Dishwasher pumps
- Other small three-phase motor drives
Technical Specifications
Parameter
Value
Voltage Rating
250V
Configuration
3-Phase Bridge
Current Rating
3A
Package Type
DIP-26
By integrating multiple functions into a single module, the FSB50825A from ON Semiconductor offers a highly efficient, reliable, and compact solution for driving three-phase motors. Its robust design and protection features make it an ideal choice for engineers looking to enhance system performance while reducing time-to-market.
