Introducing the FOD8332: A High Performance IGBT/MOSFET Gate Drive Optocoupler

The FOD8332 is a cutting-edge gate drive optocoupler designed by ON Semiconductor to provide electrical isolation between the input signal and the power switch. This robust component is specifically engineered to drive Insulated-Gate Bipolar Transistors (IGBTs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), making it an ideal choice for a wide range of high-power applications.

Key Features

• High Noise Immunity: With a common mode rejection rate of 35 kV/µs minimum at VCM = 1500 V, the FOD8332 ensures stable operation in noisy environments.
• Advanced Active Miller Clamp: An integrated active Miller clamp function provides effective suppression of Miller-induced turn-on, enhancing the driving capabilities and reliability of the device.
• High Isolation Voltage: A 5,000 VRMS isolation rating for one minute ensures safe operation by providing a robust barrier against high voltage transients.
• High Output Current: The device is capable of delivering 2.5 A peak output current, making it suitable for driving a wide range of power switches.
• Wide Operating Temperature Range: The FOD8332 operates reliably over a temperature range from -40°C to +100°C, accommodating various industrial environments.

Applications

The versatility of the FOD8332 makes it suitable for an array of applications, including:

• Industrial inverters
• Motor drives
• Induction heating systems
• Uninterruptible power supplies (UPS)
• Renewable energy inverters

Quality and Reliability

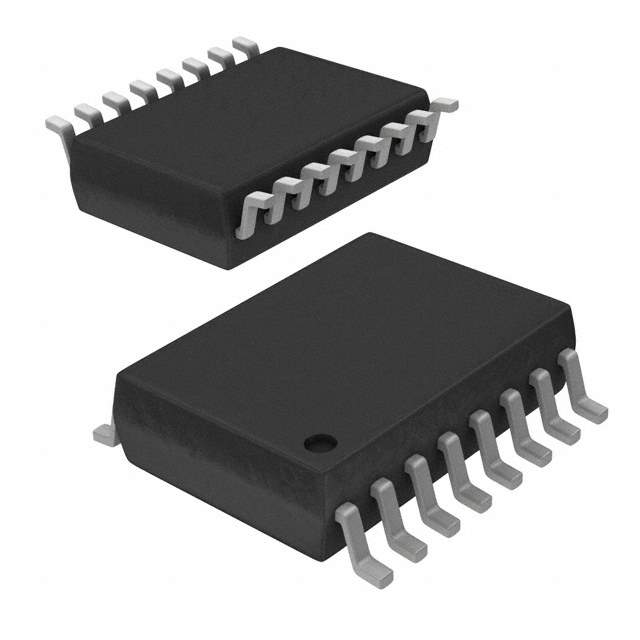

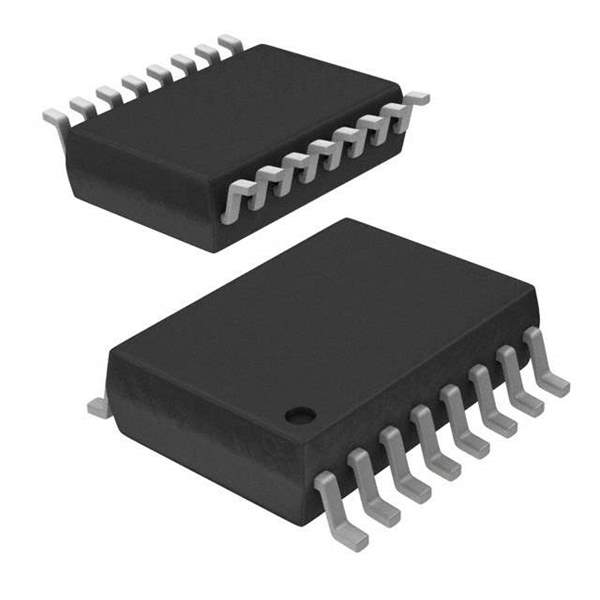

ON Semiconductor's commitment to quality ensures that the FOD8332 meets stringent performance standards. It is housed in a compact, surface-mountable SO-16 package, providing excellent isolation and thermal performance. The device is also compliant with regulatory standards, including UL1577 and DIN EN/IEC 60747-5-5, for reinforced insulation.

With its superior gate drive performance, high isolation, and robust design, the FOD8332 from ON Semiconductor is a top-tier solution for designers looking to enhance the efficiency and reliability of their high-power switching applications.
