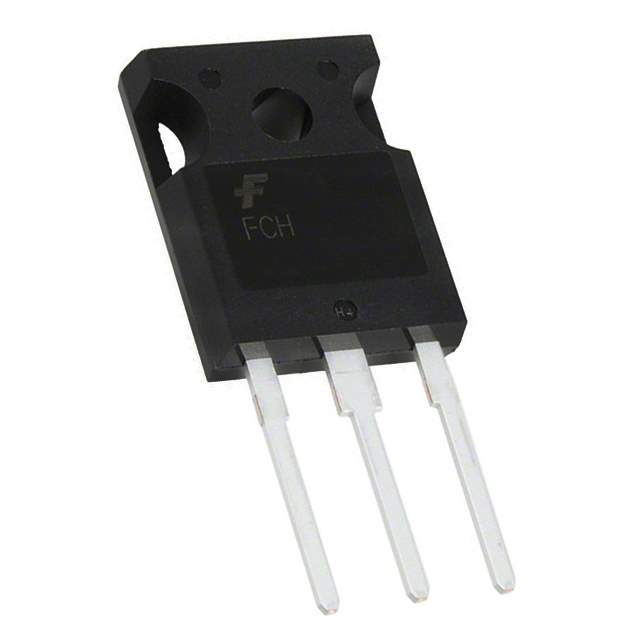

ON Semiconductor FGY160T65SPD-F085: A Robust IGBT Solution

The FGY160T65SPD-F085 is a cutting-edge Insulated Gate Bipolar Transistor (IGBT) from ON Semiconductor, designed to cater to the demanding needs of high-power switching applications. This semiconductor device is engineered to deliver exceptional performance with a focus on efficiency, reliability, and thermal stability.

Key Features

• High Current Capability: With a collector current rating of 160A, the FGY160T65SPD-F085 is capable of handling high-power applications with ease.
• High Voltage Rating: The device supports a maximum collector-emitter voltage of 650V, making it suitable for a wide range of industrial and commercial power systems.
• Low On-State Voltage: The IGBT is designed to have a low V_CE(ON) to minimize conduction losses and improve overall efficiency.
• Fast Switching Speed: Fast switching characteristics ensure reduced switching losses and better performance in applications requiring high-frequency operation.
• Robustness: The device features a rugged design that can withstand harsh conditions, including a high short-circuit withstand time.
• Co-Packaged Diode: Comes with a co-packaged Free Wheeling Diode (FWD) that provides efficient reverse recovery characteristics.

Applications

The FGY160T65SPD-F085 is ideal for a variety of applications, including:

• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Induction Heating
• Renewable Energy Inverters
• Power Factor Correction (PFC) Circuits

Product Advantages

ON Semiconductor's FGY160T65SPD-F085 IGBT provides significant advantages for designers looking for a balance between performance and cost-efficiency. Its high current and voltage ratings, combined with low on-state voltage and fast switching, make it a compelling choice for power electronic systems. Additionally, the robustness and integrated diode offer convenience and reliability, ensuring a long operational life and reduced system complexity.

With its superior characteristics, the FGY160T65SPD-F085 from ON Semiconductor stands out as a powerful and reliable component for modern power management solutions.
