Same model may have multiple batches, images only for reference.

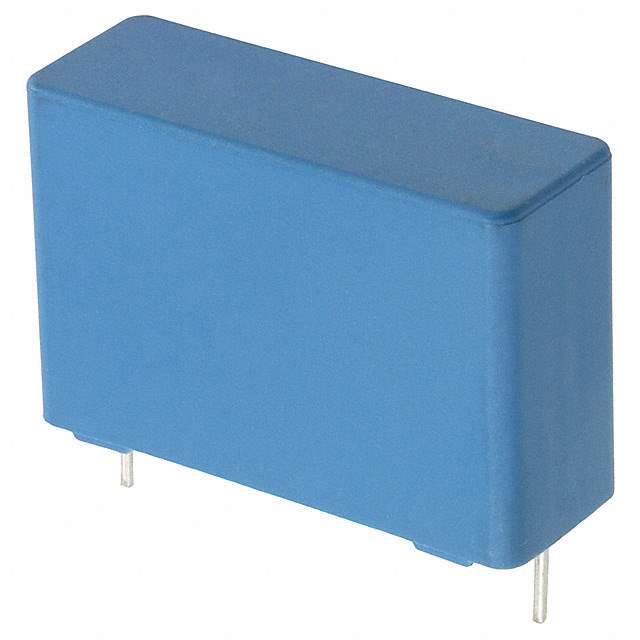

B32774D1155K000 Real Image
Same model may have multiple batches, images only for reference.

B32774D1155K000

Part No B32774D1155K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1.5UF 10% 1.3KVDC RAD
Datasheet
B32774D1155K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 1.5μF
Tolerance ±10%
Voltage Rating - DC 1300V (1.3kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 31.3 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.492" W (31.50mm x 12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199810-B32774D1155K000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B32774D1155K000 CAD Model

Description

Product Overview

The B32774D1155K000 is a high-quality, reliable capacitor suitable for a variety of electronic applications. Its robust construction ensures longevity and efficiency in performance.

Features and Benefits

  • High capacitance value for robust energy storage and regulation.
  • Operating temperature range suitable for various environments.
  • Low equivalent series resistance (ESR) for efficient energy flow.

Applications

  • Power supply smoothing circuits
  • DC-DC converters
  • Motor drives and controllers
  • General electronic circuits

Additional Details

The B32774D1155K000 is manufactured with precision to meet the demands of modern electronic systems, offering both reliability and performance.
