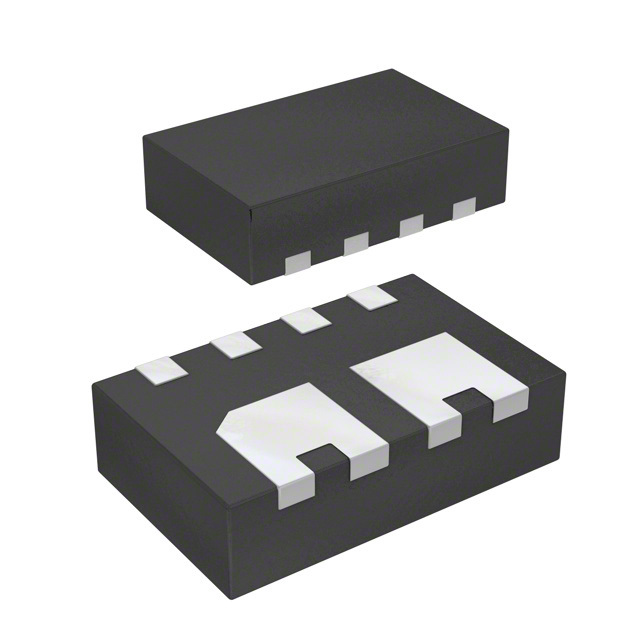

The FDMB3900AN from ON Semiconductor is a state-of-the-art dual N-Channel PowerTrench® MOSFET designed for high-performance power switching applications. This component is an excellent choice for engineers looking to improve efficiency and thermal performance in their designs.

Key Features

• Low R<sub>DS(on): The device boasts an exceptionally low on-resistance, which minimizes conduction losses and improves overall efficiency.
• High Current Capability: With its robust design, the FDMB3900AN can handle high current loads, making it suitable for demanding applications.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® process ensures that the device offers low gate charge and reduced switching losses.
• Dual MOSFET Configuration: The integration of two N-Channel MOSFETs in a single package allows for compact and simplified circuit designs.
• Thermal Management: The FDMB3900AN is designed with optimal thermal characteristics, ensuring reliability even under high temperature conditions.

Applications

The versatility of the FDMB3900AN makes it suitable for a wide range of applications, including:

• DC/DC Converters
• Motor Drives
• Power Management Systems
• Battery Management
• Load Switching

Technical Specifications

Parameter Value Drain-to-Source Voltage (V<sub>DSS) 30V Continuous Drain Current (I<sub>D) 20A Power Dissipation (P<sub>D) 3.1W Operating Temperature Range -55°C to +150°C

With its advanced features and robust performance, the ON Semiconductor FDMB3900AN is an ideal solution for designers seeking to enhance the efficiency and reliability of their power management systems.
