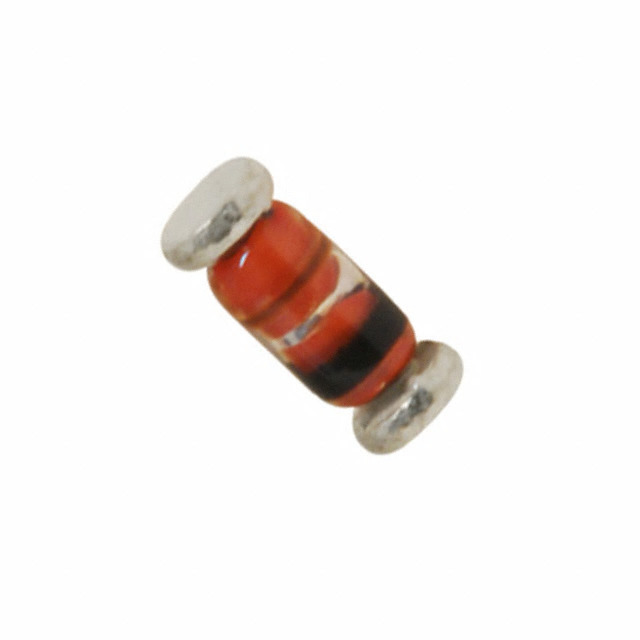

The FDLL300 from ON Semiconductor is a high-performance, surface-mount Schottky Barrier Diode designed for applications requiring low forward voltage drop and fast switching. This diode is housed in a small LL-34 package, making it ideal for space-constrained applications.
Key Features
- Low Forward Voltage Drop: The FDLL300 boasts a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
- Fast Switching Speed: With its fast switching characteristics, this diode is suitable for high-frequency operations, contributing to improved performance in circuits where speed is critical.
- Surface-Mount Package: The compact LL-34 package allows for efficient use of board space, making it perfect for densely packed PCBs.
- High Reliability: ON Semiconductor's commitment to quality ensures that the FDLL300 is a reliable component for long-term use in various applications.
- RoHS Compliant: The diode is compliant with RoHS standards, ensuring that it meets environmental regulations and can be used in products sold worldwide.
Applications
The FDLL300 is versatile and can be used in a wide range of applications, including:
- Power supply rectification
- DC-DC converters
- Reverse voltage protection
- Free-wheeling diodes in converters and motor control circuits
- Switching power supplies
- Or-ing diode in redundant power systems
Technical Specifications
Parameter
Value
Package
LL-34
Peak Repetitive Reverse Voltage
30 V
Average Rectified Forward Current
200 mA
Forward Voltage Drop
0.385 V at 15 mA
Operating Temperature Range
-55°C to +125°C
The FDLL300 is a testament to ON Semiconductor's dedication to providing components that blend performance with practicality. Its attributes make it an excellent choice for engineers and designers looking to optimize their power management and signal processing applications.
