Products specifications

Manufacturer ON Semiconductor
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 1V (Maximum)
Voltage - Breakdown (Min) 1.4V
Voltage - Clamping (Maximum) at Ipp 6V
Current - Peak Pulse (10/1000μs) 8A
Power Line Protection No
Applications USB 3.0
Capacitance at Frequency 0.17pF at 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)

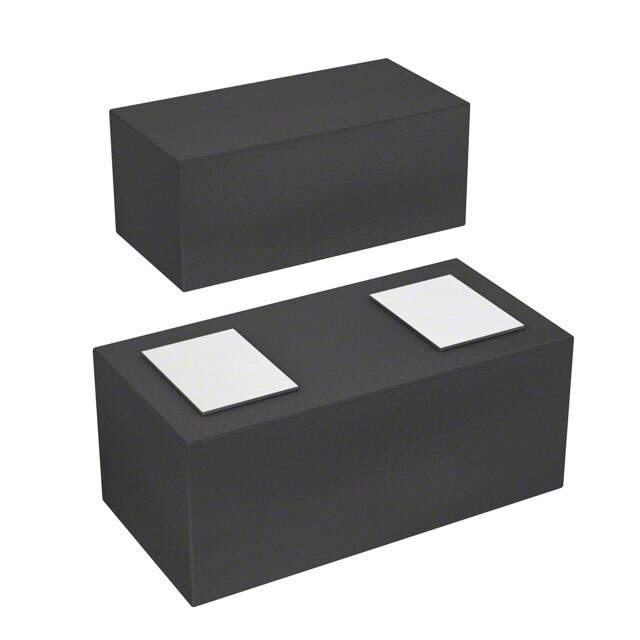

Supplier Device Package 2-DFN (0.6x0.3)
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805544-ESDL2011PFCT5G
Ultra Librarian 3D Model Ultra Librarian ESDL2011PFCT5G CAD Model

Description

The ESDL2011PFCT5G by ON Semiconductor is a cutting-edge ESD (Electrostatic Discharge) protection device designed to safeguard high-speed data lines and other sensitive circuits from the potentially damaging effects of ESD events. Engineered to provide robust protection while maintaining signal integrity, this product is an ideal solution for a wide range of applications, including consumer electronics, telecommunications, and computing devices.

Key Features

  • Low Capacitance: With a low loading capacitance of typically 0.5 pF, the ESDL2011PFCT5G is optimized for protecting high-speed data lines without compromising signal quality.
  • High ESD Protection: It offers excellent ESD protection exceeding the IEC61000-4-2 standard (Level 4), ensuring that devices remain safe from the most severe ESD strikes.
  • Small Package: The compact SOD-882 package allows for space-saving PCB designs, making it suitable for portable and space-constrained applications.
  • Low Clamping Voltage: This device features a low dynamic resistance, resulting in a low clamping voltage that helps to minimize the stress on the protected component during an ESD event.
  • Fast Response Time: The fast response time of the ESDL2011PFCT5G ensures quick protection activation upon detecting an ESD strike, thereby providing immediate defense for sensitive circuits.
  • RoHS Compliant: Adhering to environmental standards, this product is RoHS compliant, making it suitable for use in various international markets.

Applications

  • USB Interfaces
  • HDMI Ports
  • DisplayPort Interfaces
  • Thunderbolt Ports
  • LVDS Lines
  • Serial-ATA (SATA) Ports

The ESDL2011PFCT5G is a testament to ON Semiconductor's commitment to providing innovative, high-quality protection solutions. Its combination of low capacitance, high ESD protection, and compact form factor makes it a versatile choice for designers looking to enhance the durability and reliability of their electronic products.
