ON Semiconductor BAV70LT1G Product Description

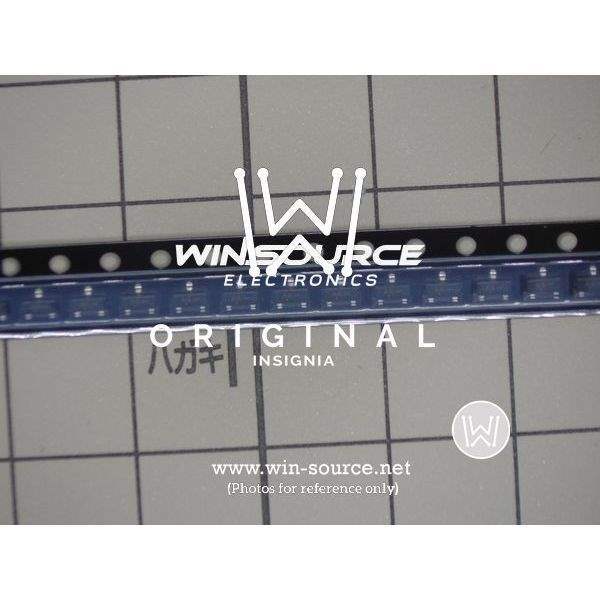

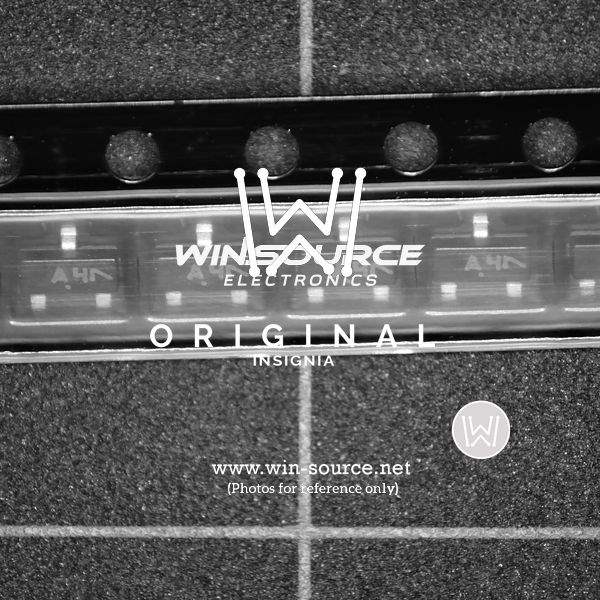

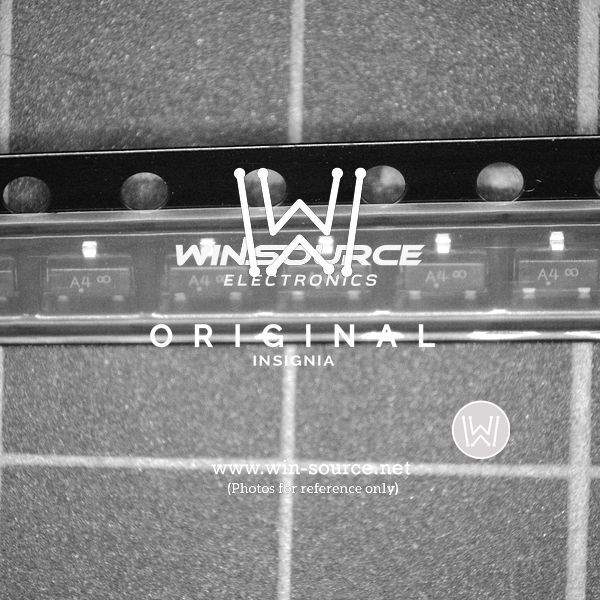

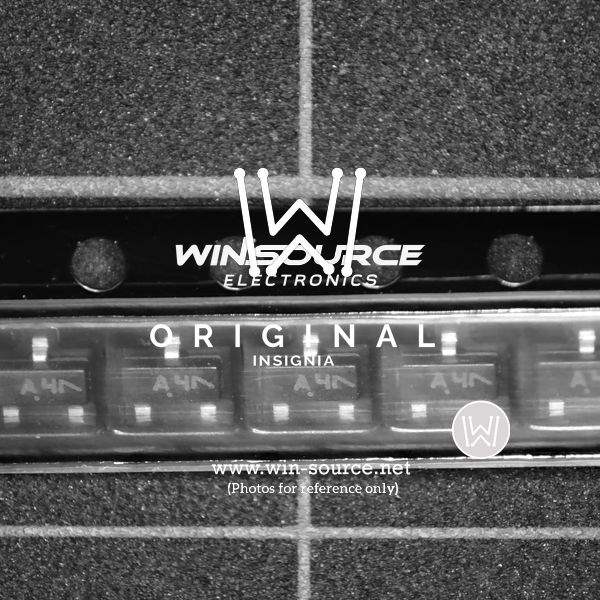

The BAV70LT1G is a high-performance, dual series switching diode designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This diode is encapsulated in a compact SOT-23 package, making it an ideal choice for space-constrained applications. It is engineered to deliver fast switching speeds and low leakage currents, enhancing the overall efficiency of electronic circuits.

Key Features

• High-Speed Switching: The BAV70LT1G offers excellent high-speed switching performance with a reverse recovery time as low as 6 ns, making it suitable for high-frequency applications.
• Low Leakage Current: With a low leakage current of less than 2.5 μA, this diode ensures minimal power loss and improved energy efficiency.
• Dual Diode Configuration: The device contains two diodes in series within a single package, providing design flexibility and saving board space.
• Reverse Voltage: It can withstand a continuous reverse voltage of up to 70 volts, providing reliable performance in various applications.
• Forward Current: The BAV70LT1G supports a continuous forward current of 200 mA, catering to a wide range of operational requirements.
• Operating Temperature Range: It is designed to operate within a temperature range of -55°C to +150°C, ensuring stability across diverse environmental conditions.
• RoHS Compliant: The product is RoHS compliant, adhering to environmental standards by avoiding the use of hazardous substances.

Applications

The BAV70LT1G is versatile and can be used in a variety of applications, including:

• High-speed switching in logic circuits
• General-purpose switching applications
• Power management systems
• Protection circuits
• Voltage clamping
• Signal demultiplexing

This ON Semiconductor product is a testament to the company's commitment to providing high-quality, reliable components that enhance the performance and efficiency of electronic systems. Whether you're designing consumer electronics, automotive systems, or industrial equipment, the BAV70LT1G is an excellent choice for your diode switching needs.
