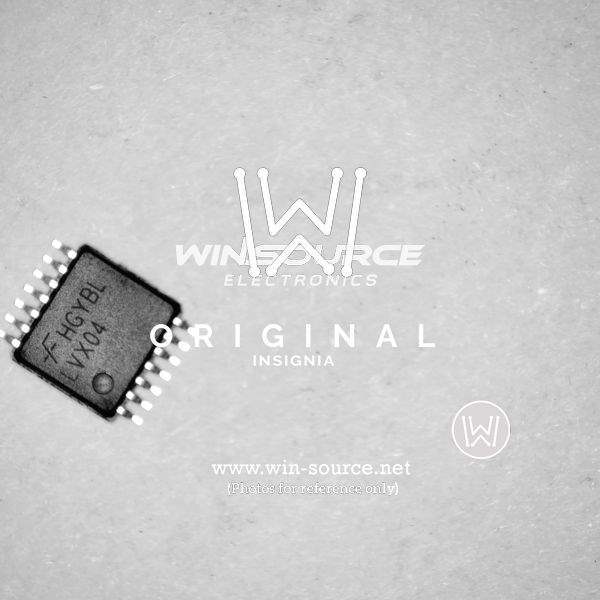

ON Semiconductor 74LVX04MTC: Low Voltage Hex Inverter

The 74LVX04MTC from ON Semiconductor is a high-performance, low-voltage CMOS hex inverter integrated circuit, designed to deliver the ideal balance between speed and power efficiency. This device is part of the 74LVX family, which operates at lower voltages ranging from 2.0V to 3.6V, making it an excellent choice for battery-operated and portable applications where power conservation is critical.

Featuring six independent inverter gates, the 74LVX04MTC is packaged in a compact 14-pin TSSOP (Thin Shrink Small Outline Package), which is ideal for space-constrained applications. Each inverter is designed to provide high drive current while maintaining low static power consumption. This characteristic is particularly beneficial in extending battery life for portable electronics.

Key Features:

• Low Voltage Operation: The device supports a wide operating voltage range from 2.0V to 3.6V, allowing for flexible integration into various low-voltage systems.
• High Drive Capability: Despite its low power consumption, the 74LVX04MTC can drive up to 24mA at the output, ensuring strong signal integrity for connected devices.
• Power Down Protection: Inputs and outputs are equipped with power down protection, which prevents device damage when the power supply is off.
• Low Quiescent Current: The IC boasts a low ICC of 2µA (max) when the device is not switching, contributing to overall energy savings.
• High-Speed Operation: Fast propagation delays are a hallmark of this device, with typical values as low as 5.8ns at 3.3V, making it suitable for high-speed applications.
• Multiple Package Options: Available in a variety of packages, the TSSOP version offers a space-saving solution without compromising performance.

The 74LVX04MTC is also characterized by its robustness, with Latch-Up Performance Exceeds 500mA on all pins, ensuring stable operation under transient conditions. Its compatibility with TTL levels makes it versatile for interfacing with other logic families.

Whether you're designing consumer electronics, communication devices, or any application requiring efficient logic operations at low voltages, the ON Semiconductor 74LVX04MTC stands out as a reliable and efficient choice for your design needs.

Please note that the above information is subject to change and it is important to consult the datasheet or manufacturer for the most current product specifications.
