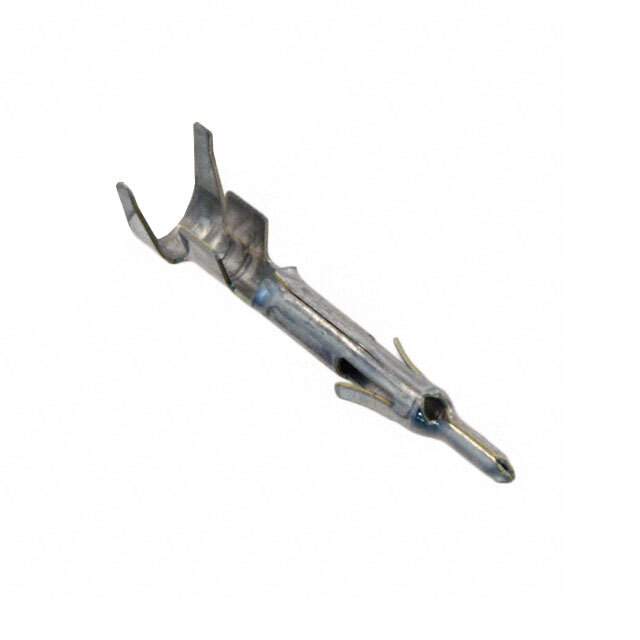

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts>Multi Purpose
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 170360
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170360-3-ND,A100474CT,1703603,A100474TR,-170360-3-SI
Standard Package 4,000
Win Source Part Number 1334246-170360-3
Ultra Librarian 3D Model Ultra Librarian 170360-3 CAD Model

Description

TE Connectivity AMP Connectors 1334246-170360-3 is a high-quality multi-purpose contact component.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Wire Gauge: 18-22 AWG
  • Contact Termination: Crimp
  • Contact Material: Brass
  • Pin or Socket: Pin
  • Packaging: Reel - TR
  • Standard Package: 4,000
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
  • MSL Level: 1 (Unlimited)
  • RoHS Status: ROHS3 compliant
