ON Semiconductor 74ABT245CMTC: Bidirectional Transceiver

The 74ABT245CMTC is a high-performance, non-inverting bidirectional transceiver that belongs to the advanced BiCMOS technology family from ON Semiconductor. This integrated circuit is designed to provide both high-speed and low-power operation, making it an excellent choice for interfacing between different voltage and current domains in digital systems. With its robust design, the 74ABT245CMTC is well-suited for a wide range of applications, including telecommunications, computing, and industrial control systems.

Key Features

• Octal Bidirectional Data Flow: The device features eight bidirectional data lines, allowing for simultaneous two-way communication across multiple channels.
• High-Speed Operation: Capable of operating at frequencies up to 190 MHz, the 74ABT245CMTC is ideal for high-speed data transfer applications.
• Low Power Consumption: The device is designed to minimize power consumption, making it suitable for power-sensitive designs.
• Tri-State Outputs: The inclusion of tri-state outputs enables the device to disconnect from the data bus completely, which is essential for multiplexing and bus management.
• Live Insertion and Extraction: It supports live insertion and extraction without power-off, reducing system downtime and maintenance complexity.

Product Specifications

• Supply Voltage Range: The 74ABT245CMTC operates over a broad supply voltage range, accommodating various logic levels.
• Output Drive Capability: It boasts a robust output drive capability, ensuring clear signal transmission even over long distances or in noisy environments.

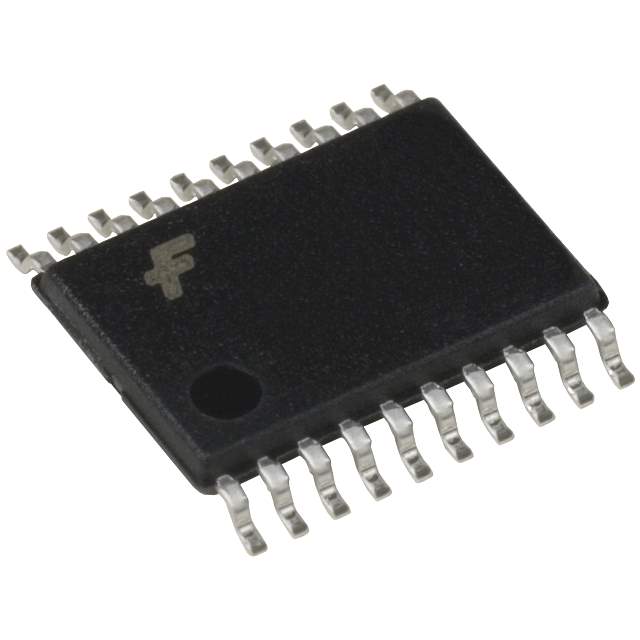

• Package: The device comes in a compact 20-pin TSSOP package, optimizing board space and simplifying PCB design.

Applications

• Data communication systems
• Network routers and switches
• Bus interface devices
• Computer motherboards
• Industrial control systems

With its combination of speed, power efficiency, and design flexibility, the ON Semiconductor 74ABT245CMTC is an essential component for modern electronic systems requiring reliable bidirectional data transfer.
