The 2N5884 is a high-power PNP bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor. This robust power transistor is primarily used in amplification and switching applications. With its ability to handle significant power levels, the 2N5884 is an ideal choice for commercial and industrial electronic devices that require reliable performance under demanding conditions.
Key Features:
- High Current Handling: The 2N5884 is capable of managing high current up to 25A, making it suitable for heavy-duty operations.
- High Power Dissipation: With a power dissipation of 200W, this transistor can withstand and dissipate considerable amounts of heat generated during operation.
- High Voltage Rating: It has a collector-emitter voltage (VCEO) rating of 80V, ensuring stable performance in high-voltage circuits.
- PNP Configuration: As a PNP transistor, it is designed to pass majority carriers in the form of holes, making it efficient for positive-side switching applications.

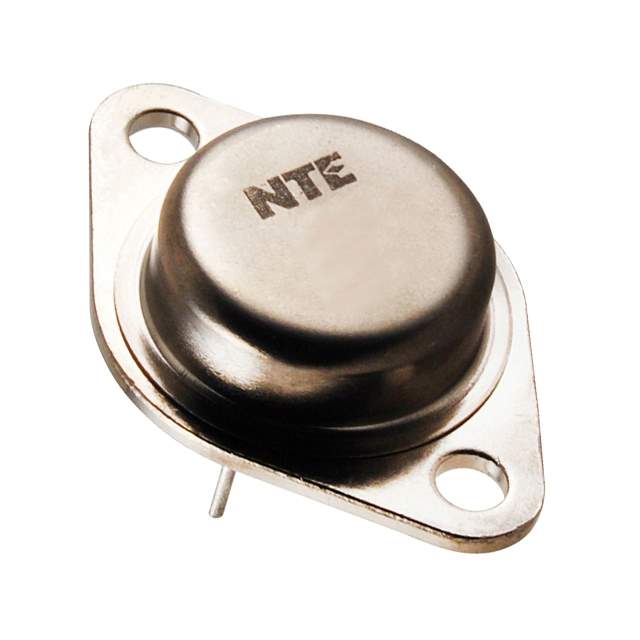

- TO-3 Package: Enclosed in a TO-3 metal case, the 2N5884 ensures excellent heat dissipation and mechanical durability.
Applications:
The 2N5884 transistor is widely used across various applications due to its high power and current handling capabilities. Some of the common applications include:
- Linear power amplifiers
- Switching regulators
- Motor controls
- Power inverters
- Audio amplifiers
Technical Specifications:
Parameter
Value
Collector-Emitter Voltage (VCEO)
80V
Collector Current (IC)
25A
Power Dissipation (PD)
200W
Operating Junction Temperature (TJ)
-65 to 200°C
Package Type
TO-3
For detailed information and datasheets, it is recommended to visit the official ON Semiconductor website or contact authorized distributors. The 2N5884 from ON Semiconductor stands as a testament to the company's commitment to providing high-quality components for the most rigorous electronic applications.
