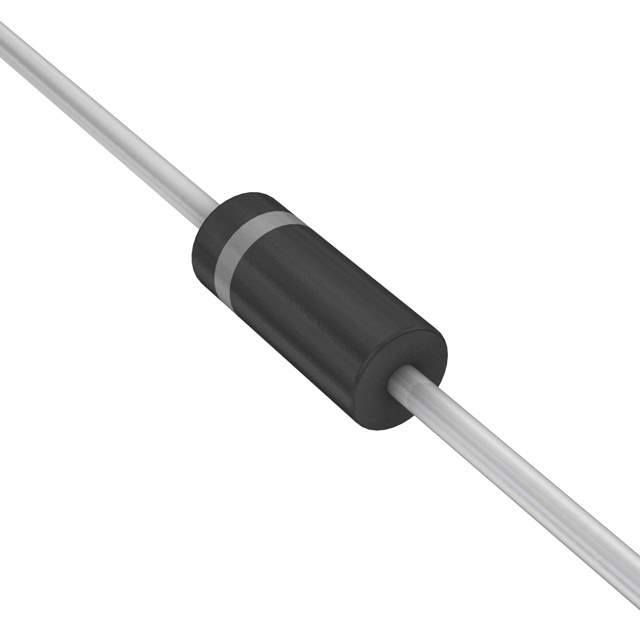

1N5347BG

Part No 1N5347BG
Manufacturer ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 10V 5W AXIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Bulk
Status Active
Voltage - Zener (Nom) (Vz) 10V
Tolerance ±5%
Maximum Power Dissipation 5W
Impedance (Max) (Zzt) 2 Ohm
Current - Reverse Leakage @ Vr 5μA @ 7.6V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 1A
Temperature Range - Operating -65°C to 200°C
Mounting Through Hole
Case / Package Axial
Win Source Part Number 197368-1N5347BG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N5347BG CAD Model

Description

The 1N5347BG from ON Semiconductor is a robust and reliable Zener diode, designed to provide precise voltage regulation and protection across a wide range of applications. This Zener diode is a popular choice for professionals seeking a high-quality component that ensures stability and consistency in their electronic circuits.

Key Features

  • Voltage Regulation: With a nominal Zener voltage of 10V, the 1N5347BG offers precise voltage regulation, making it ideal for providing reference voltages in various circuits.
  • Power Dissipation: This diode has a power dissipation rating of 5W, which allows it to handle significant power levels, suitable for a wide range of industrial and commercial applications.
  • High Surge Capability: It is designed to withstand voltage surges, ensuring durability and longevity even in harsh electrical environments.
  • Package: Encased in a DO-201AE package, the 1N5347BG is easy to install and fits well into a variety of board layouts.
  • Temperature Range: The operating junction temperature range for this Zener diode is from -55°C to +150°C, which allows it to perform reliably in extreme conditions.

Applications

The 1N5347BG is versatile and can be used in numerous applications such as:

  • Voltage regulation modules
  • Overvoltage protection circuits
  • Switching power supplies
  • Other types of power management systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 1N5347BG is no exception. Each diode is rigorously tested to ensure it meets the high standards expected from ON Semiconductor products. This includes testing for stability, durability, and performance under various conditions.

Conclusion

With its combination of precise voltage regulation, high power dissipation, and surge capability, the 1N5347BG Zener diode from ON Semiconductor is an excellent choice for designers and engineers looking for a reliable component to integrate into their power management systems. Its robust performance and versatility make it a valuable addition to any project requiring stable voltage references or protection against voltage transients.
