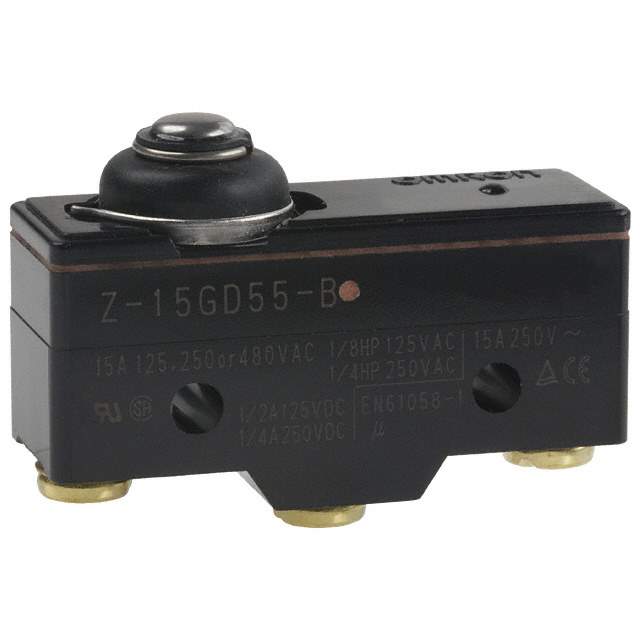

Z-15GD55-B

Name: Z-15GD55-B
Brand: Omron
SKU: 1323779
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	Z-15GD55-B
Manufacturer	Omron
Catalog	Snap Action, Limit Switches
Description	SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Limit Switches
Manufacturer	Omron Automation and Safety
Packaging	Tray
Circuit	SPDT
Switch Function	On-Mom
Current Rating (Amps)	15A (AC), 6A (DC)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
Actuator Type	Round (Pin Plunger)
Mounting	Chassis Mount
Termination Style	Screw Terminal
Ingress Protection	IP62
Operating Force	540gf
Release Force	114gf
Pretravel	0.071" (1.8mm)
Differential Travel	0.002" (0.05mm)
Overtravel	0.062" (1.6mm)
Temperature Range - Operating	-15°C ~ 80°C
Operating Position	0.846" (21.5mm)
Electrical Life	500,000 Cycles
Mechanical Life	20,000,000 Cycles
Base Product Number	Z-15G
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9040
Other Part Number	Z15GD55B,SW1004,Z-15GD55-B-ND
Standard Package	1
Win Source Part Number	1323779-Z-15GD55-B
Ultra Librarian 3D Model	Ultra Librarian Z-15GD55-B CAD Model

Description

The Z-15GD55-B is a limit switch manufactured by Omron Automation and Safety.

Circuit: SPDT
Switch Function: On-Mom
Actuator Type: Round (pin plunger)
Voltage Rating: 125V AC and 30V DC
Operating Force: 540gf
Release Force: 114gf
Mechanical Life: 20,000,000 cycles
Electrical Life: 500,000 cycles
Differential Travel: 0.002" (0.05mm)
Overtravel: 0.062" (1.6mm)
Operating Position: 0.846" (21.5mm)
Mounting Type: Chassis mount
Operating Temperature: -15°C ~ 80°C
ECCN: EAR99
MSL Level: 1 (unlimited)
HTSUS: 8536.50.9040
